Replacing Combiner: Notes

  1. Refer to ACTIVE DRIVING DISPLAY INSPECTION  and stop the combiner at an angle of 10 degrees. (See ACTIVE DRIVING DISPLAY INSPECTION .)
  2. Switch the ignition off.
  3. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  4. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    3. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  5. Remove the combiner in the following order:

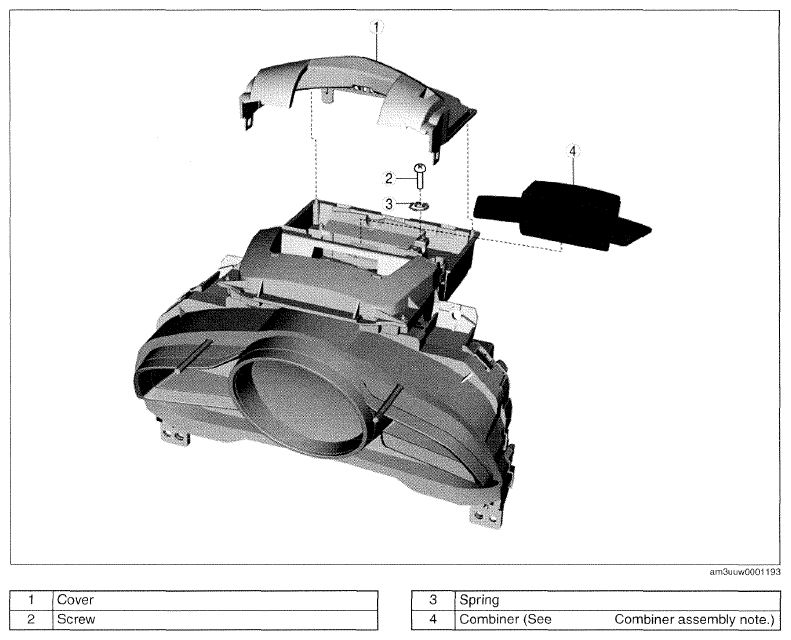

    Fig 1: Identifying Combiner, Spring And Screw
    G09784395Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
