Starter Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

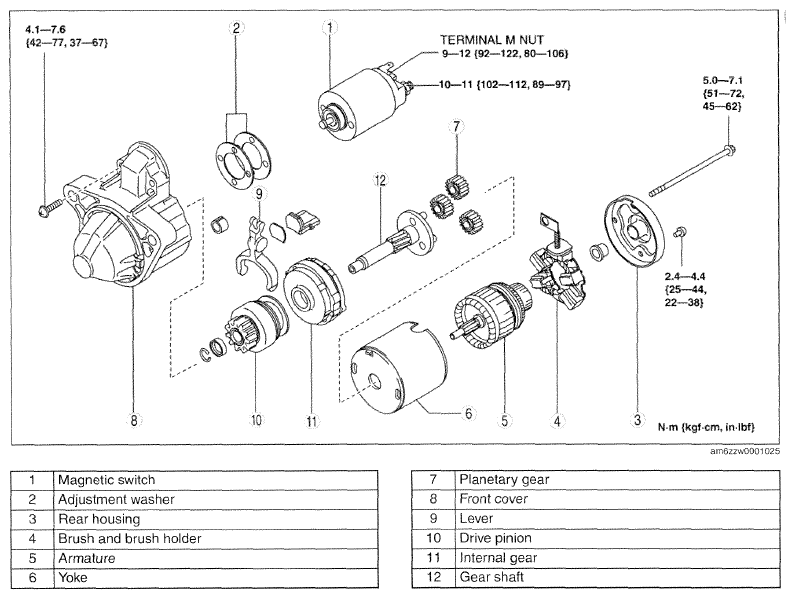

    Fig 1: Starter Replacement Components With Torque Specifications
    G09782865Courtesy of MAZDA MOTORS CORP.
