Home >> Mazda >> 2014 >> 3 SV, Standard Trans >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle [C66M-R] >> Neutral Switch Removal/Installation

Neutral Switch Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the air cleaner component. (ex: air cleaner, air hose) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

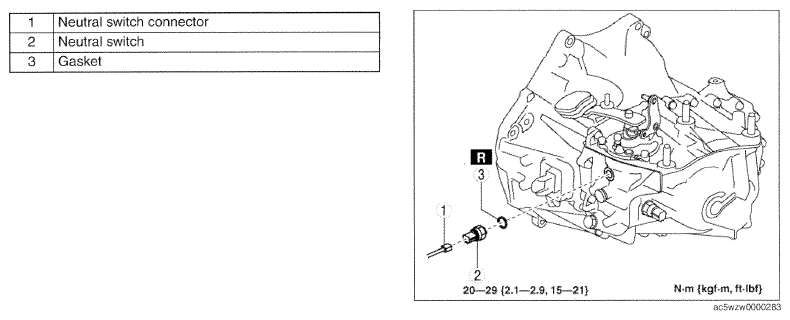

    Fig 1: Neutral Switch, Connector And Gasket With Torque Specification
    G09771165Courtesy of MAZDA MOTORS CORP.
