Keyless Entry Remote Transmitter Id Code Registration

NOTE:

• Verify that the other keyless entry remote transmitter is not being operated around the servicing area while updating the ID code.
• After completing the work, remove the key from the key cylinder and verify that all doors lock/unlock normally by operating the keyless entry remote transmitter.

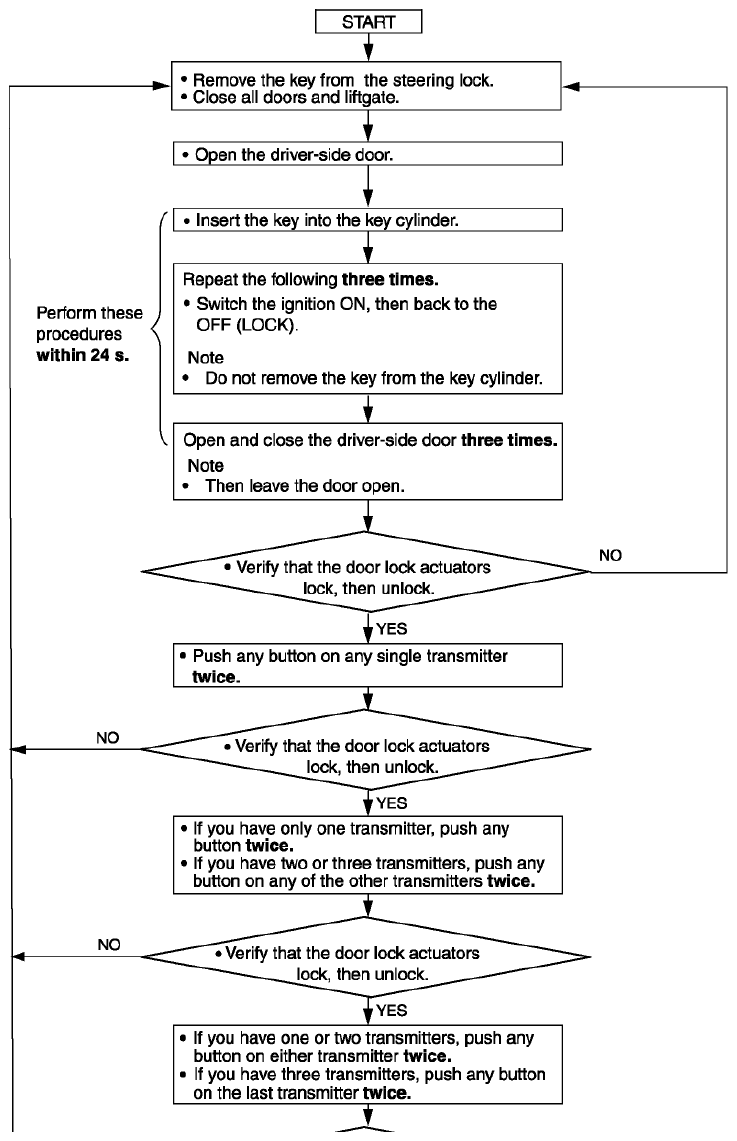

Fig 1: Keyless Entry Remote Transmitter ID Code Registration Flow Chart

Courtesy of MAZDA MOTORS CORP.
