Keyless Receiver Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    5. Third-row seat belt lower anchor installation bolt (LH) (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    6. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolt.

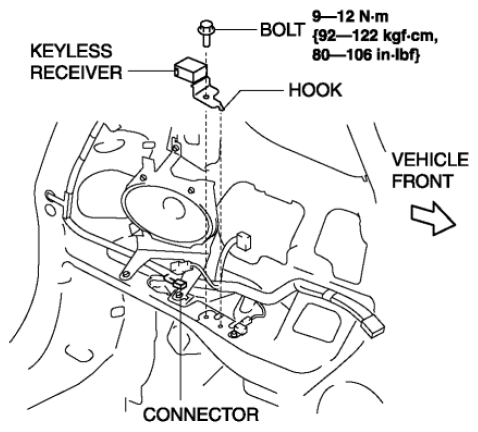

    Fig 1: Keyless Receiver, Connector, Hook And Bolt With Torque Specifications
    G08153106Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.
