Dynamic Stability Control

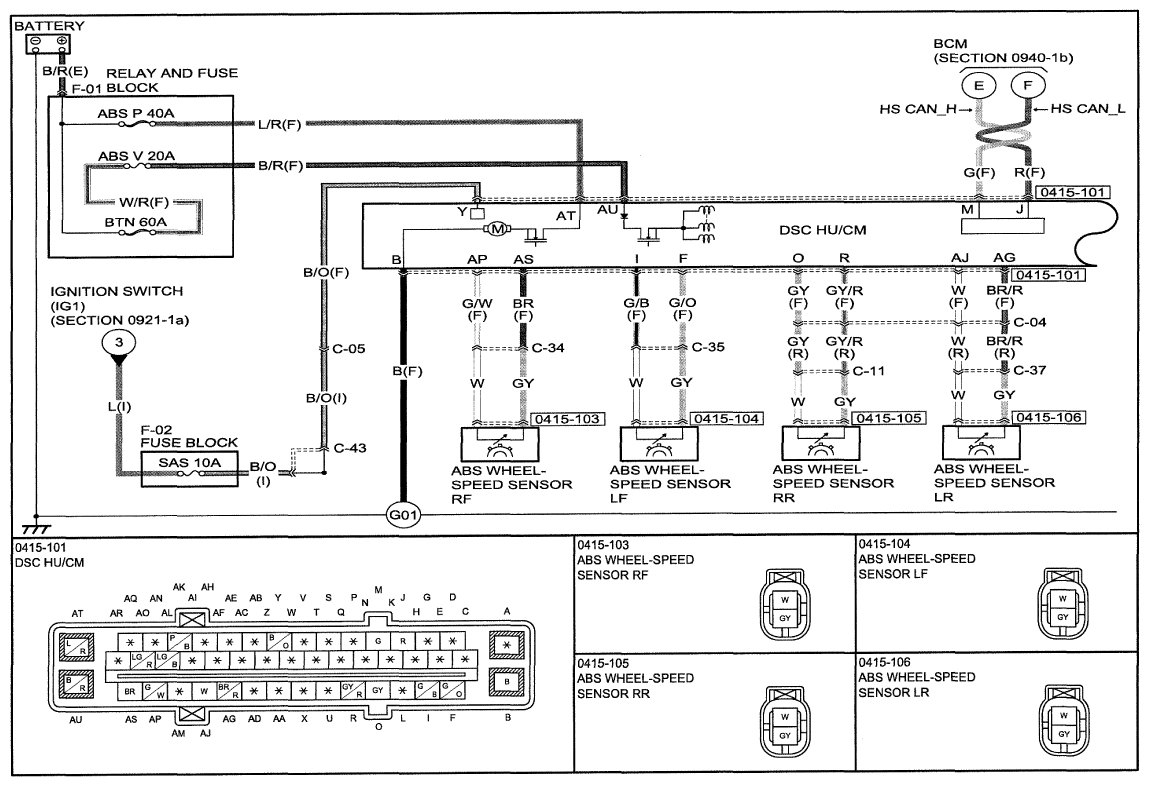

Fig 1: Dynamic Stability Control System Wiring Diagram - 0415-1a (1 Of 2)
G09125017Courtesy of MAZDA MOTORS CORP.

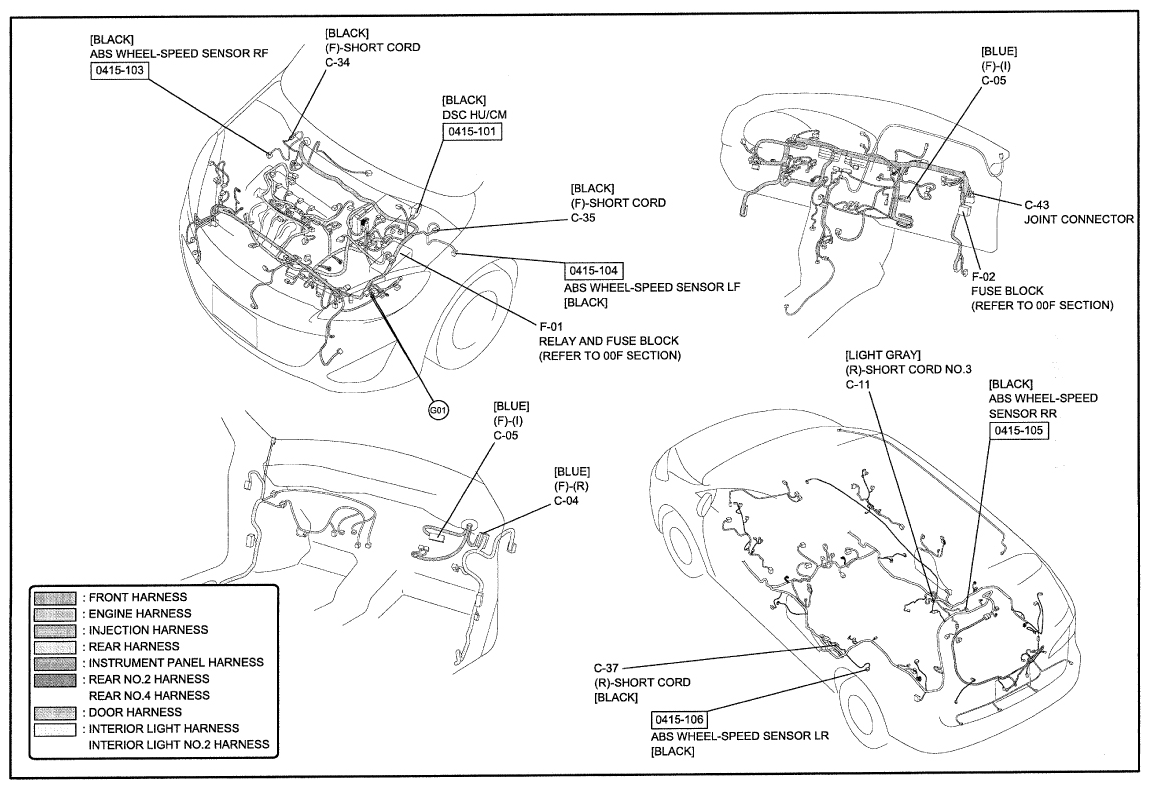

Fig 2: Dynamic Stability Control System Wiring Diagram - 0415-1a (2 Of 2)
G09125018Courtesy of MAZDA MOTORS CORP.

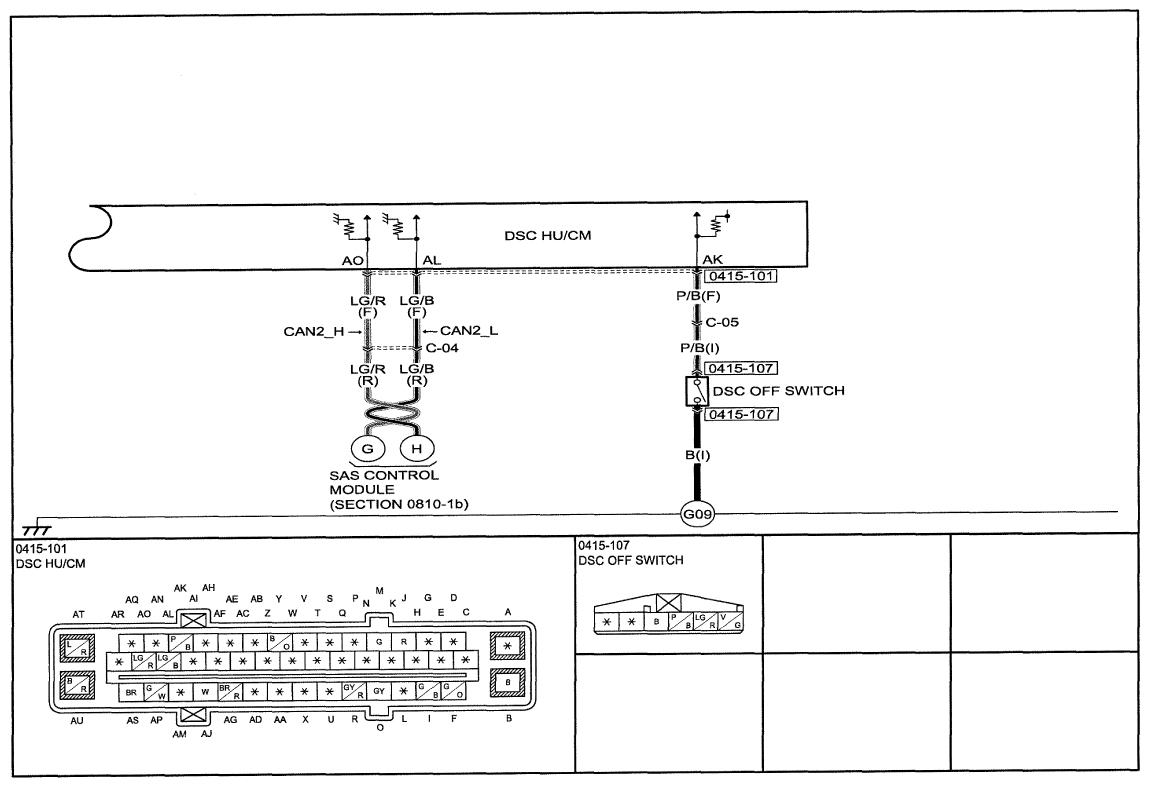

Fig 3: Dynamic Stability Control System Wiring Diagram - 0415-1b (1 Of 2)
G09125019Courtesy of MAZDA MOTORS CORP.

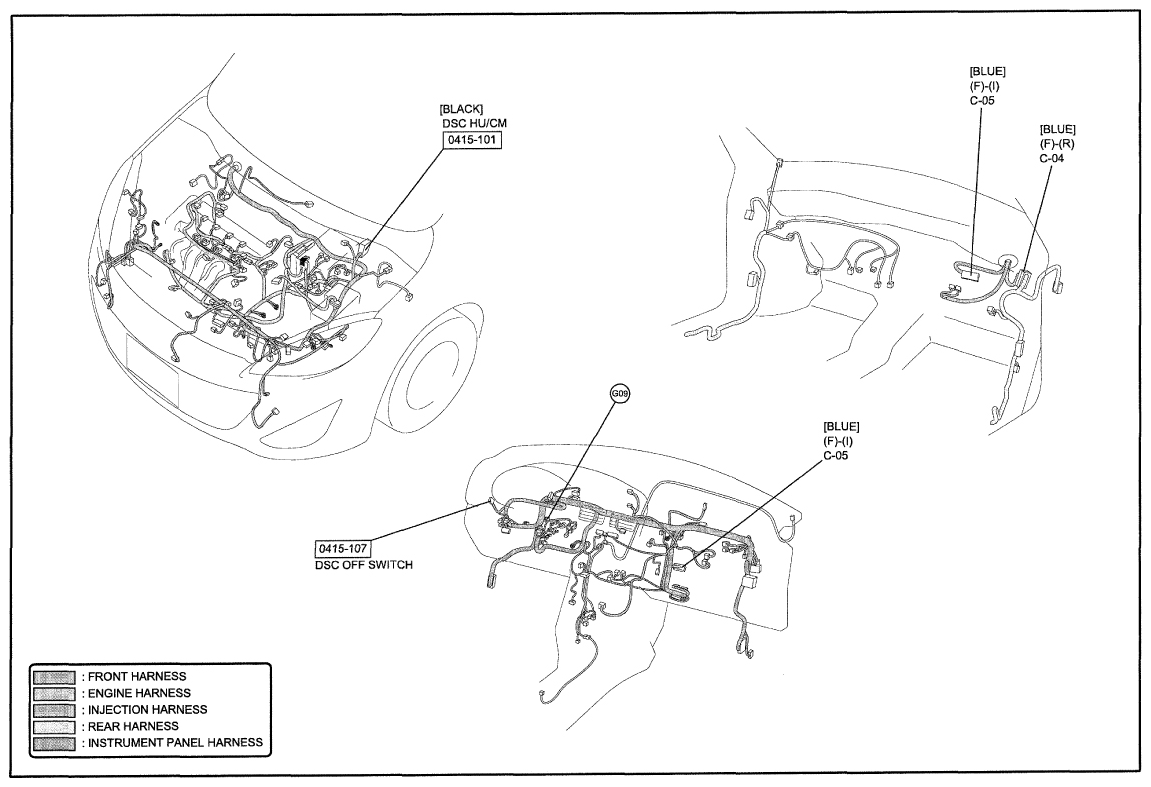

Fig 4: Dynamic Stability Control System Wiring Diagram - 0415-1b (2 Of 2)
G09125020Courtesy of MAZDA MOTORS CORP.
