5 Touring
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring System
>>
Engine
>>
Starting System
Starting System

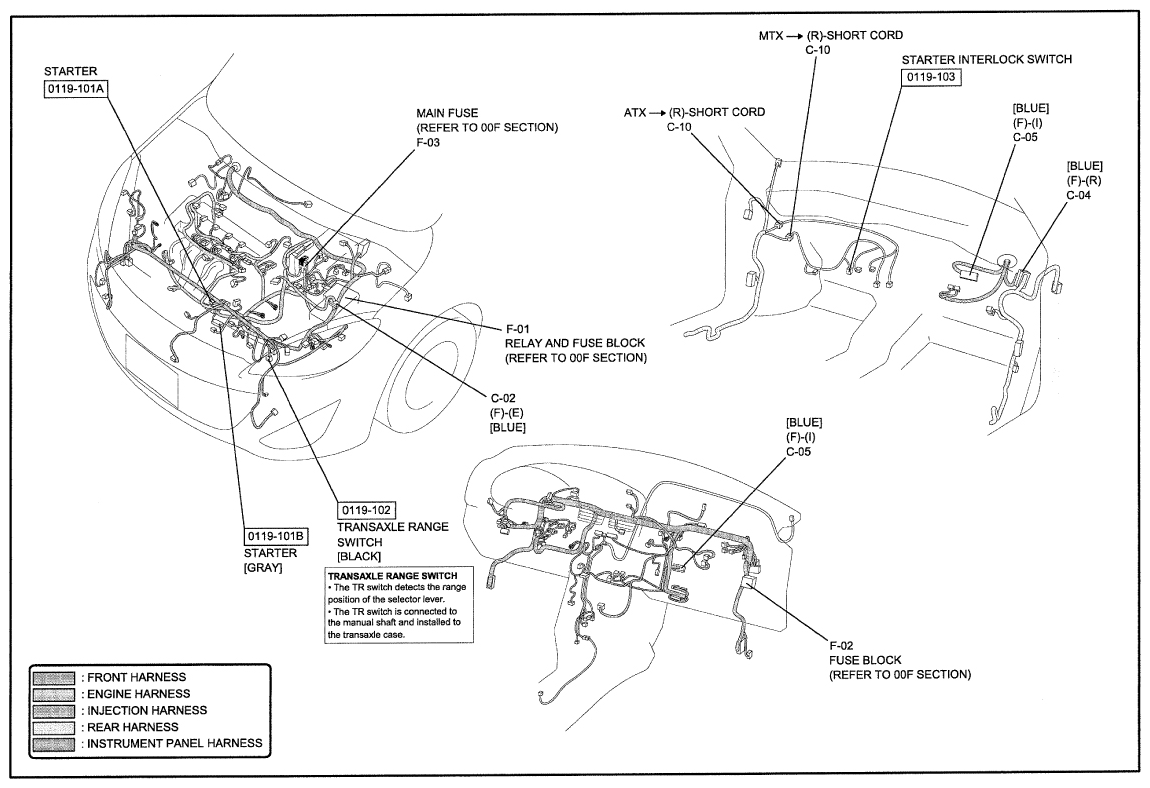

Fig 1: Starting System Wiring Diagram - 0119-1 (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

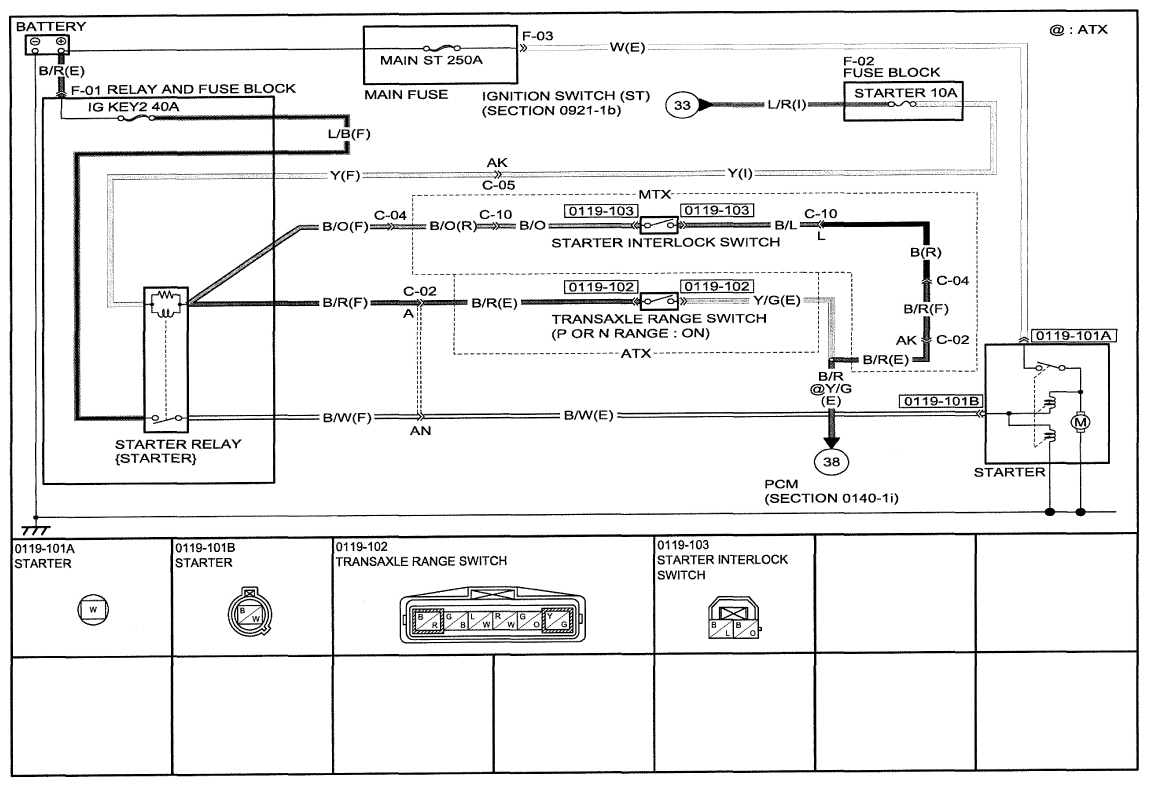

Fig 2: Starting System Wiring Diagram - 0119-1 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
