Generator Disassembly/Assembly

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

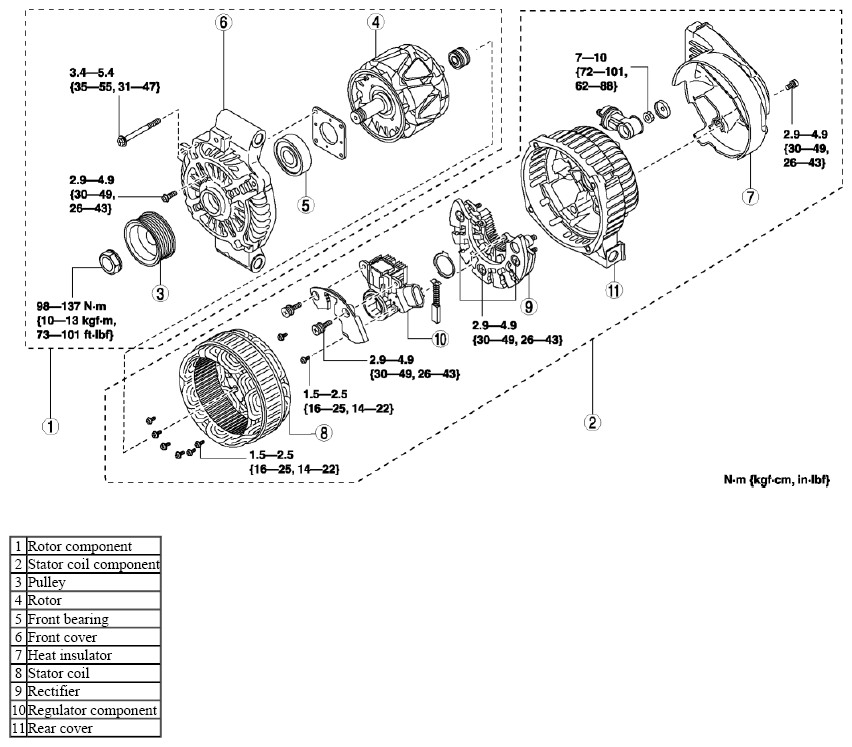

    Fig 1: Exploded View Of Generator With Torque Specification
    G08150275Courtesy of MAZDA MOTORS CORP.
