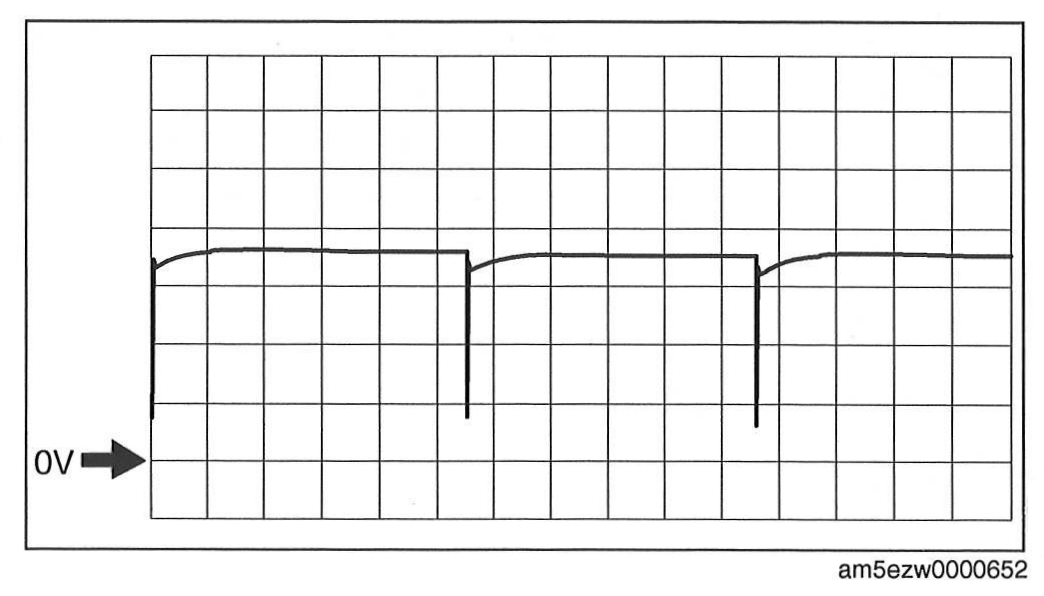

Generated Pulse (reference)
- Terminal:
- Back sensor (LH): A () - body ground (-)
- Back sensor (RH): C () - body ground (-)
- Corner sensor (LH): E () - body ground (-)
- Corner sensor (RH): G() - body ground (-)
- Oscilloscope setting: 2 V/DIV (Y), 20 ms/DIV (X), DC range
