Parking Sensor Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Pasenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Console Panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
    8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    11. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
    12. Glove Compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    13. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    14. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the nut.
  4. Disconnect the connector.

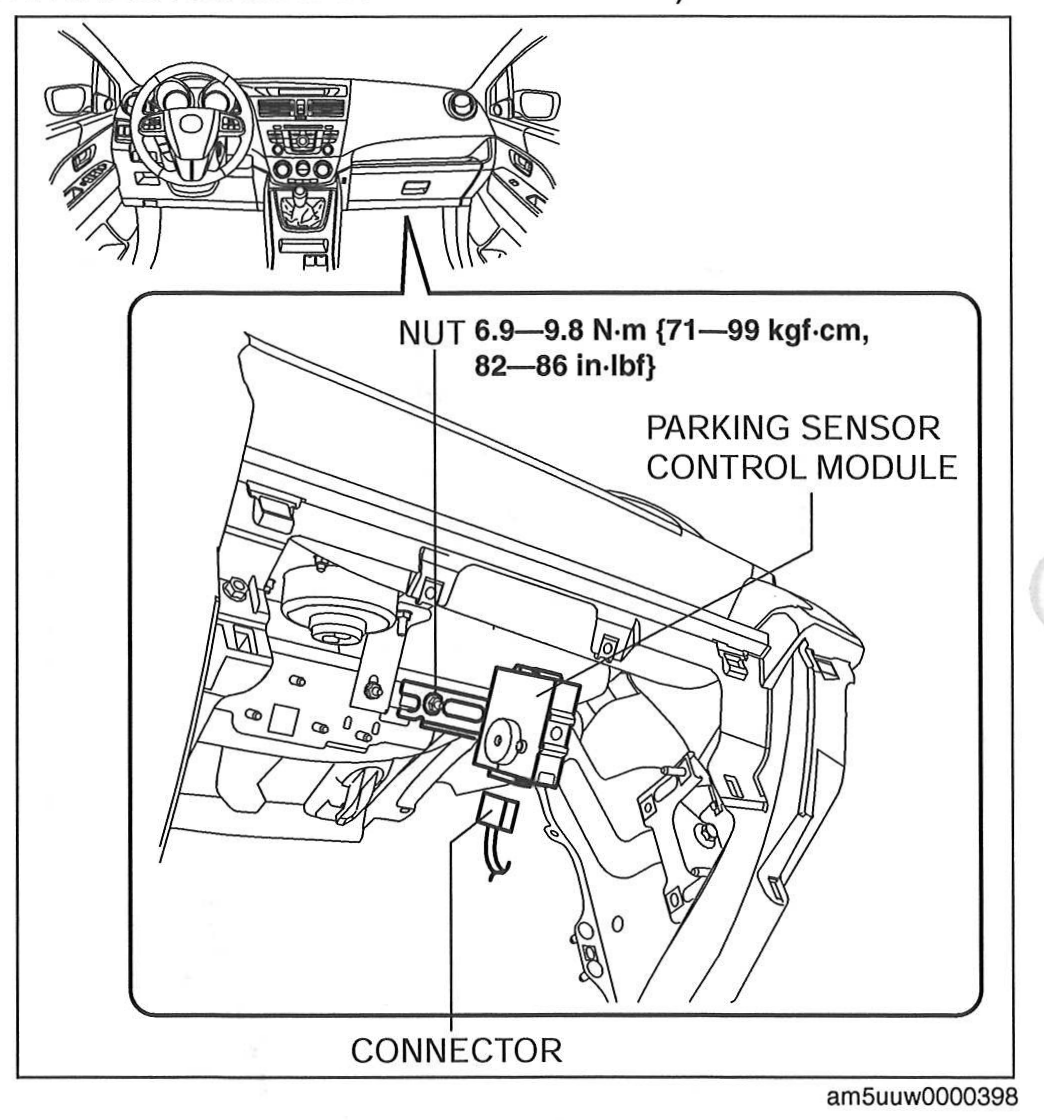

    Fig 1: Parking Sensor Control Module And Connector With Torque Specifications
    G00535414Courtesy of MAZDA MOTORS CORP.
  5. Remove the parking sensor control module.
  6. Install in the reverse order of removal.
