Starter Interlock Switch Inspection

CAUTION:

Do not reuse the starter interlock switch if it is removed from the vehicle even once. Replace with a new starter interlock switch when installing.

Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the starter interlock switch connector.
Verify that the continuity is as indicated in the table using a tester.

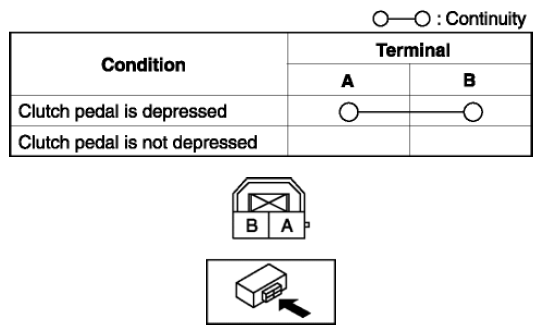

Fig 1: Starter Interlock Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.
- If the continuity is not as indicated in the table, replace the starter interlock switch.
  (See CLUTCH PEDAL REMOVAL/INSTALLATION .)
