Engine Oil Level Inspection

  1. Position the vehicle on level ground.
  2. Warm up the engine.
  3. Stop the engine and allow at least 5 min  before continuing.
  4. Remove the dipstick, wipe it cleanly, and reinstall it fully.
  5. Remove the dipstick and verify that the oil level is between the F and L marks on the dipstick.

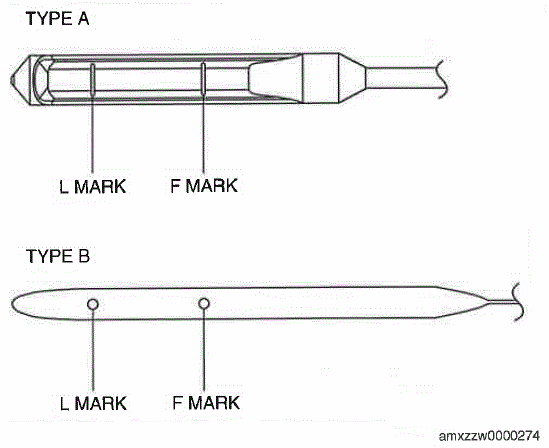

    Fig 1: Identifying Engine Oil Level F And L Marks On Dipstick
    G00539922Courtesy of MAZDA MOTORS CORP.
    • If the oil level is below the L mark, add engine oil.
