Quick Diagnostic Table

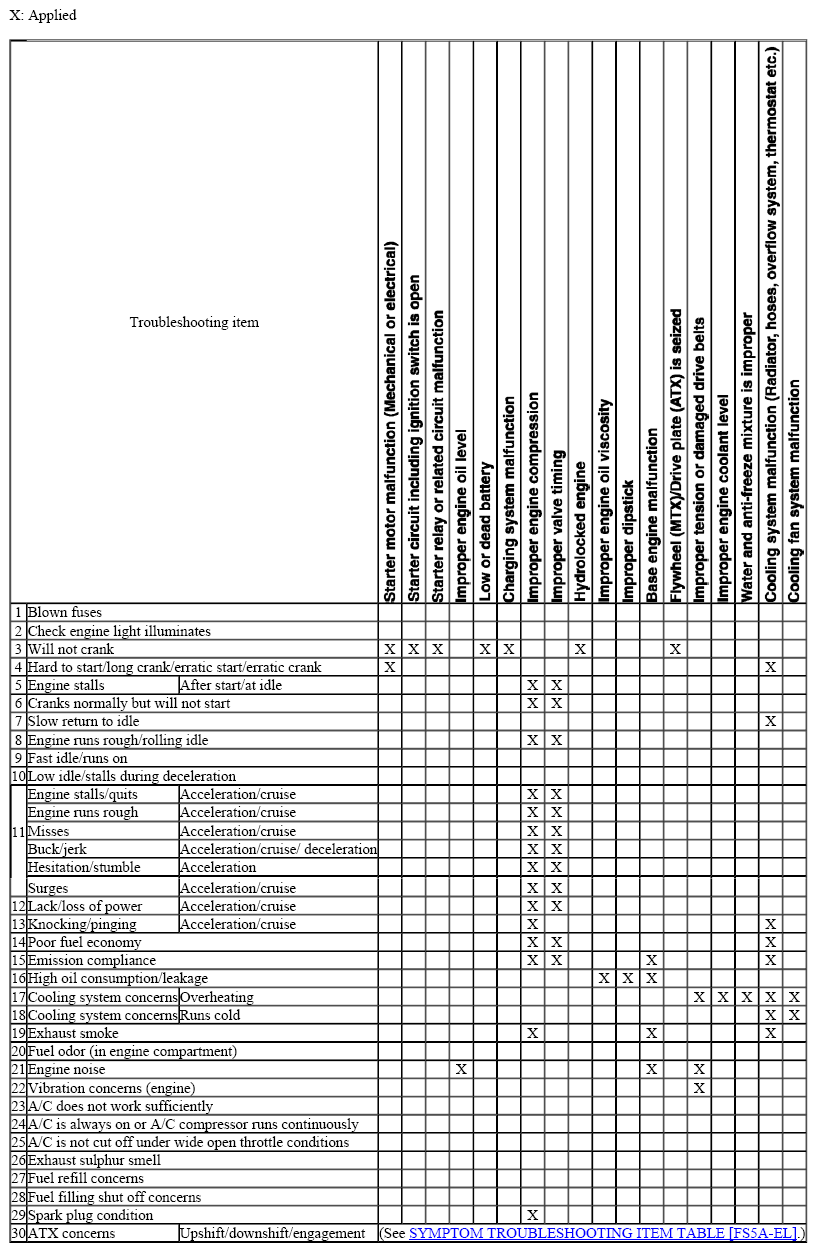

Fig 1: Quick Diagnostic Table - MZR 2.5 (1 Of 5)
G08151831Courtesy of MAZDA MOTORS CORP.

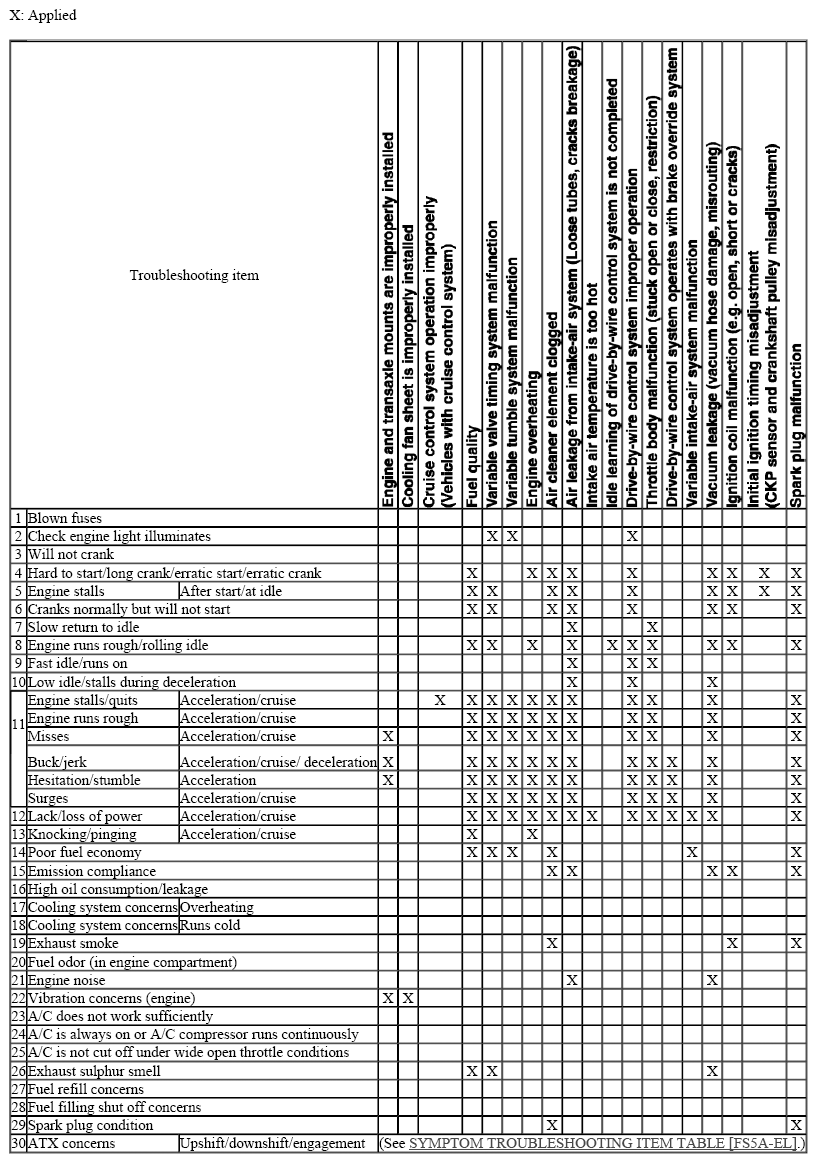

Fig 2: Quick Diagnostic Table - MZR 2.5 (2 Of 5)
G08151832Courtesy of MAZDA MOTORS CORP.
Fig 3: Quick Diagnostic Table - MZR 2.5 (3 Of 5)
G08151833Courtesy of MAZDA MOTORS CORP.

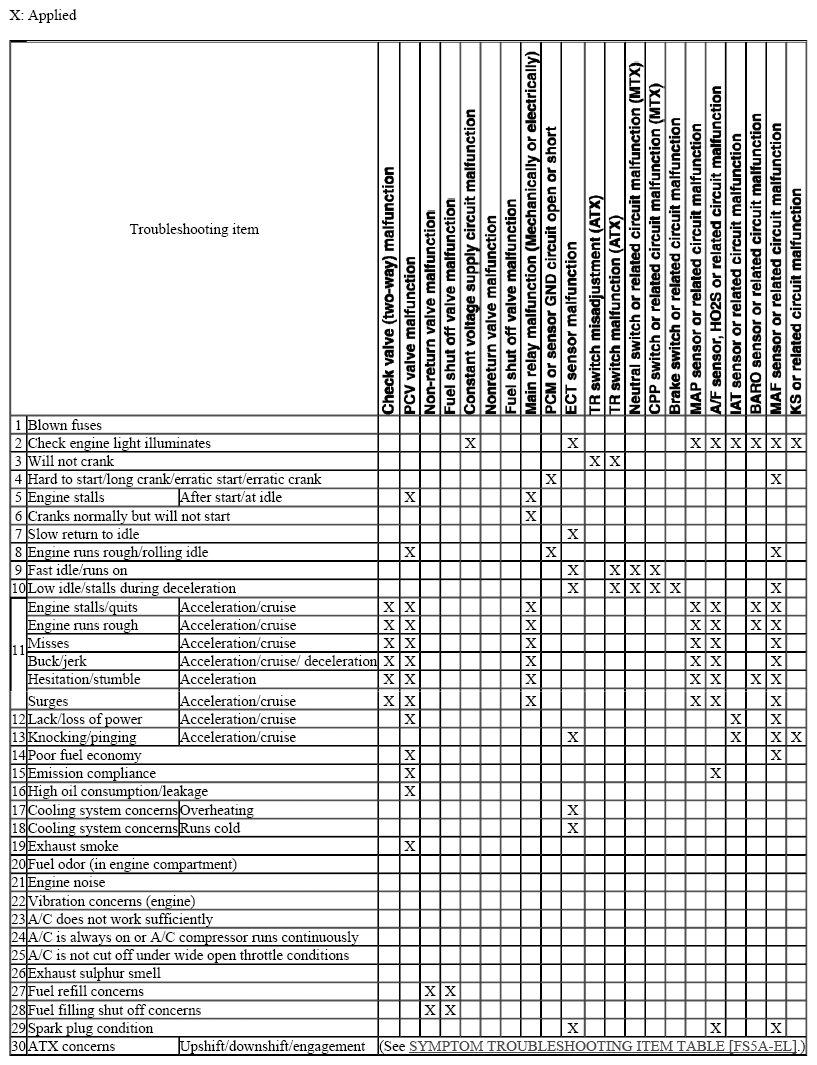

Fig 4: Quick Diagnostic Table - MZR 2.5 (4 Of 5)
G08151834Courtesy of MAZDA MOTORS CORP.

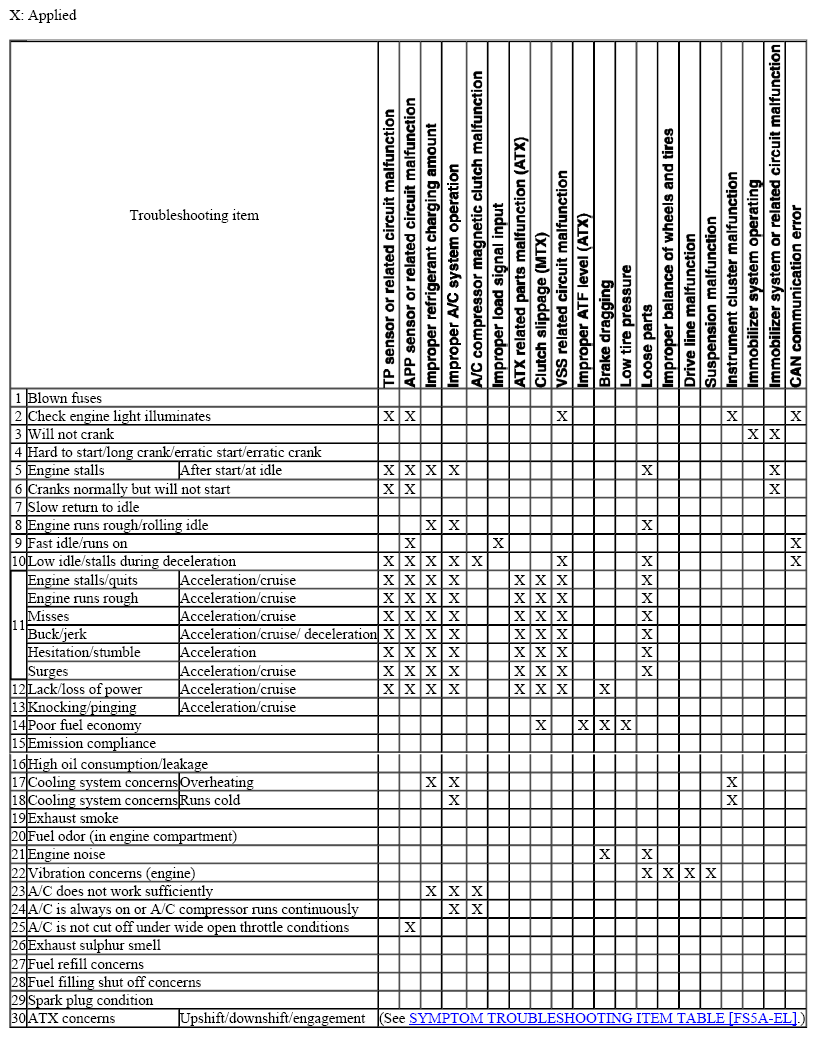

Fig 5: Quick Diagnostic Table - MZR 2.5 (5 Of 5)
G08151835Courtesy of MAZDA MOTORS CORP.
