Drive Plate Installation Bolt Installation Note
- Set the SST
to the engine.
Courtesy of MAZDA MOTORS CORP.

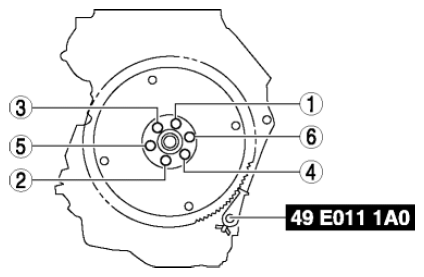

- Tighten new drive plate installation bolts uniformly in two or three passes in the order shown below.
Tightening torque
- 108-116 N.m {11.1-11.8 kgf.m, 80-85 ft.lbf}
