Part Inspection

Measure resistance between input/turbine speed sensor terminals A and B.

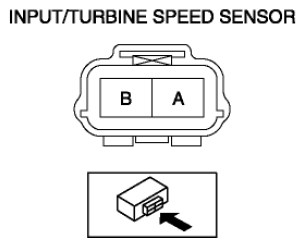

Fig 1: Identifying Input/Turbine Speed Sensor Connector Terminals
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the input/turbine speed sensor.
  Input/turbine speed sensor resistance
- 250-600 ohms
