Intermediate Sensor

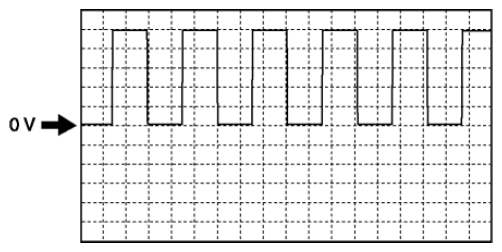

Fig 1: Intermediate Sensor Oscilloscope Waveform

Courtesy of MAZDA MOTORS CORP.

Terminal:
AC (+)-GND (-)
Oscilloscope setting:
1 V/DIV (Y), 200 μs/DIV (X), DC range
Measurement condition:
When all of the following conditions are met:
- Vehicle speed: 30 km/h {19 mph}
- 3GR
