Power Outer Mirror Disassembly/Assembly: Notes

  1. Remove the outer mirror glass. (See OUTER MIRROR GLASS DISASSEMBLY NOTE ). (See OUTER MIRROR GLASS ASSEMBLY NOTE ).
  2. Assemble in the reverse order of disassembly.

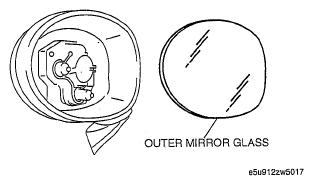

    Fig 1: Identifying Outer Mirror Glass
    G04931290Courtesy of MAZDA MOTORS CORP.
