Power Window Main Switch Inspection: Reference

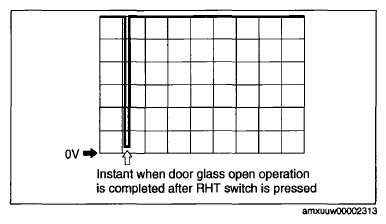

- Terminal connected:
- Vehicles with exterior open function: 2B (+) - Body ground
- Oscilloscope setting: 2V/DIV (Y): 500 ms/DIV (X), DC range
- Measurement condition: RHT switch is pressed
Courtesy of MAZDA MOTORS CORP.
