Upper Block Removal/Installation: Notes

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the main fuse block cover.
  4. Remove in the order indicated in the illustration.

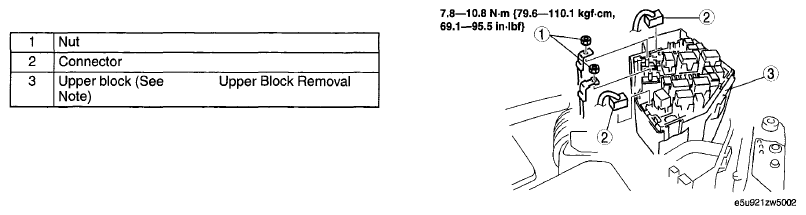

    Fig 1: Upper Block, Connector And Nut With Torque Specifications
    G06149164Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
