Fuel Pump Unit Disassembly/Assembly

WARNING:
  • Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death an damage. Fuel can also irritate skin and eyes. To prevent this, do not damage the sealing surface o. the fuel pump unit when removing or installing.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

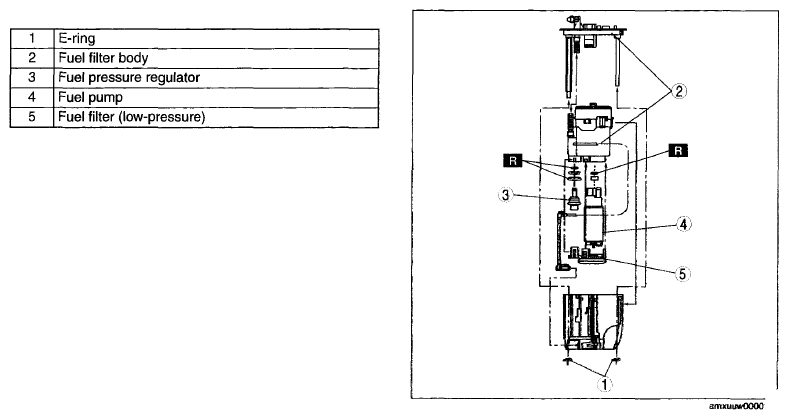

    Fig 1: View Of Fuel Pump Unit
    G06150887Courtesy of MAZDA MOTORS CORP.
