Wiring Harness: Overview

To remove the wiring harness from the clip in the engine room, pry up the hook of the clip using a flathead screwdriver.
CAUTION:
- Do not remove the wiring harness protective tape. Otherwise, the wires could rub against the body, which could result in water penetration and electrical shorting.

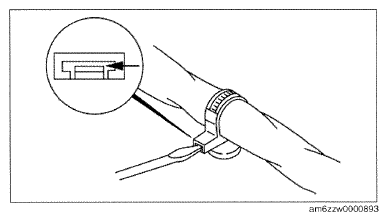

Fig 1: Identifying Engine Room Wiring Harness
Courtesy of MAZDA MOTORS CORP.

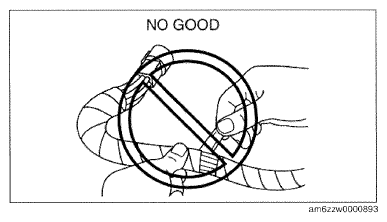

Fig 2: Caution For Removing Engine Room Wiring Harness
Courtesy of MAZDA MOTORS CORP.
