Engine Control System Device And Control Relationship Table

• Each control system and their related input and output parts are as follows.

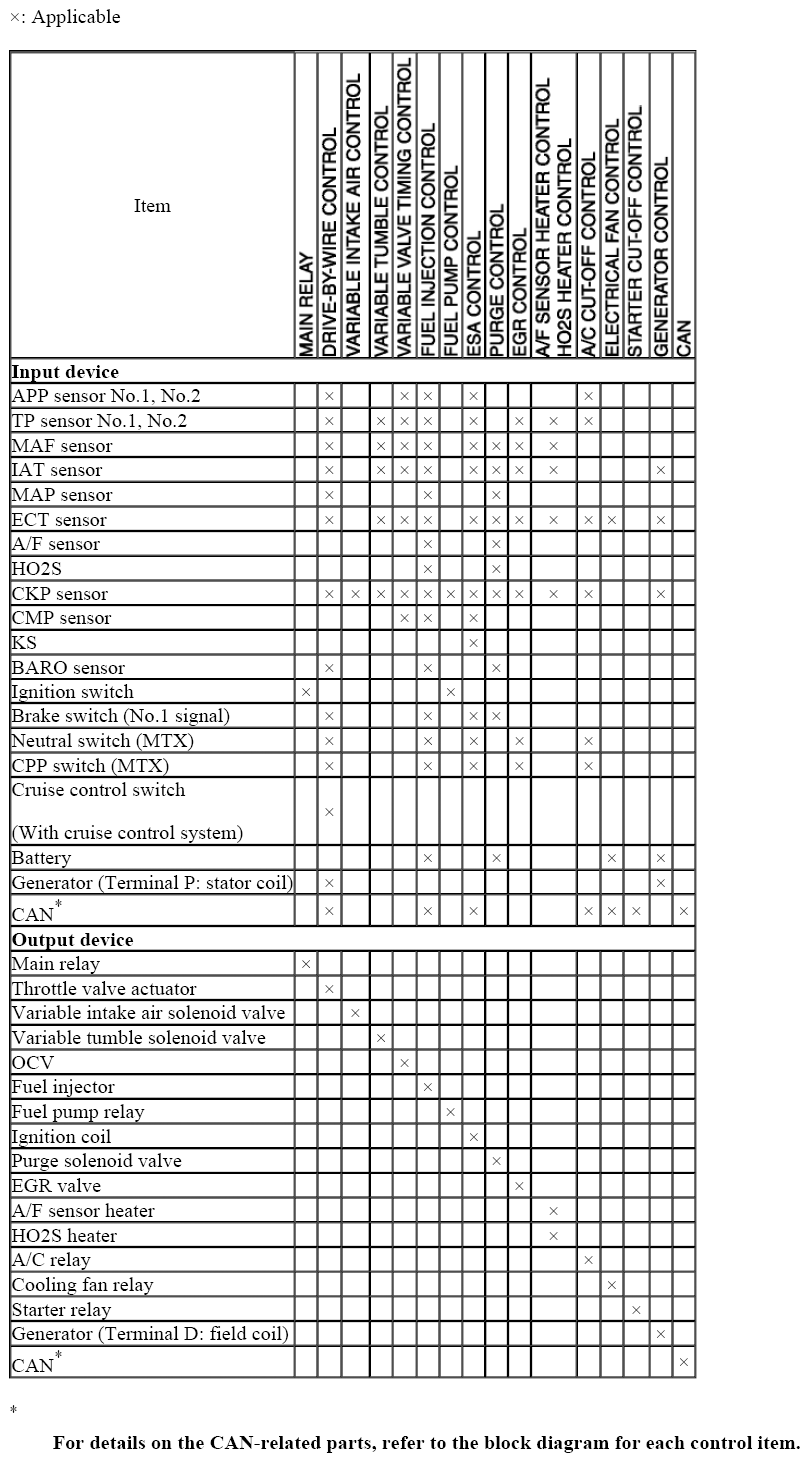

Fig 1: Control System Device And Control Relationship Table (MZR 2.5)

Courtesy of MAZDA MOTORS CORP.
