Electrical System: Fuse: Replacement

When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse malfunctions again, the circuit probably has a short and the wiring should be inspected.
Be sure the negative battery terminal is disconnected before replacing a main fuse.

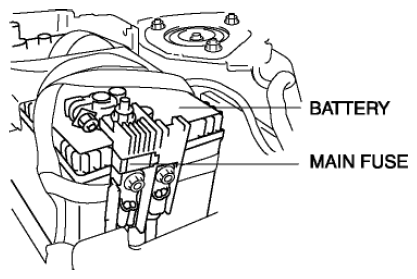

Fig 1: Identifying Battery And Main Fuse
Courtesy of MAZDA MOTORS CORP.
When replacing a pullout fuse, use the fuse puller.

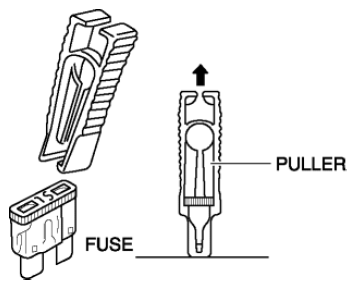

Fig 2: Pulling Out Fuse Using Fuse Puller
Courtesy of MAZDA MOTORS CORP.
