Battery Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

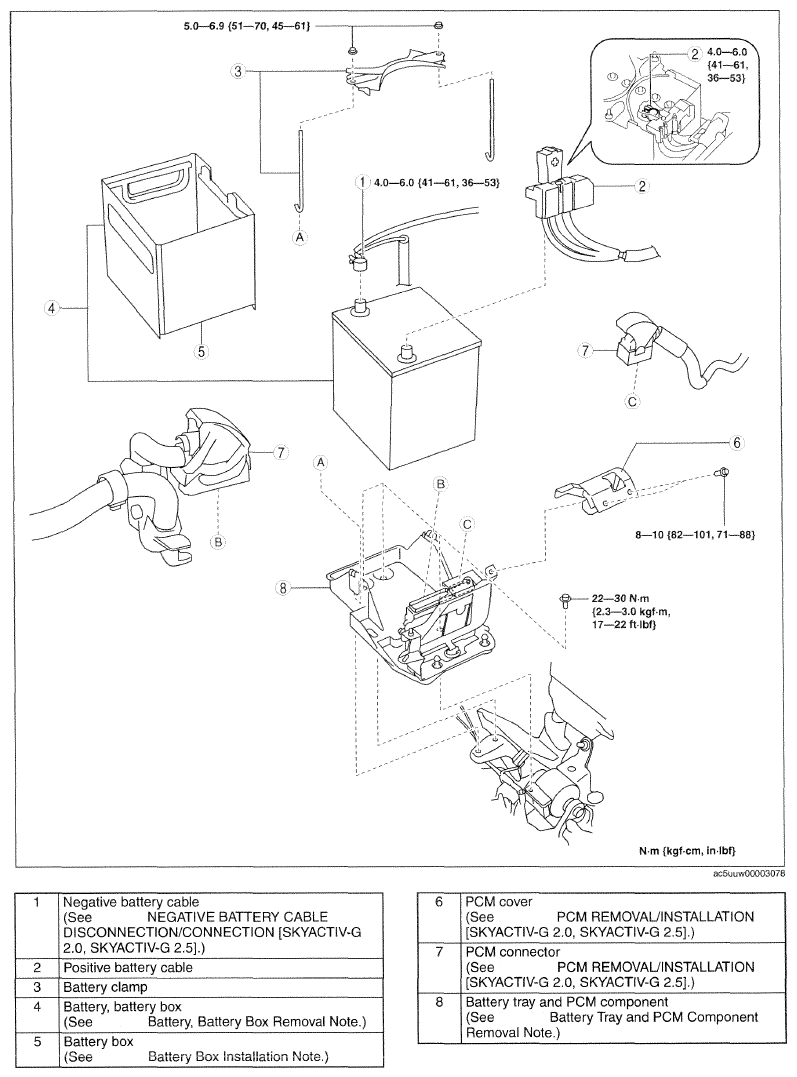

    Fig 1: Charging System Components Location (Skyactiv-G 2.0, Skyactiv-G 2.5) With Torque Specifications
    G09758617Courtesy of MAZDA MOTORS CORP.
