Generator Disassembly/Assembly

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

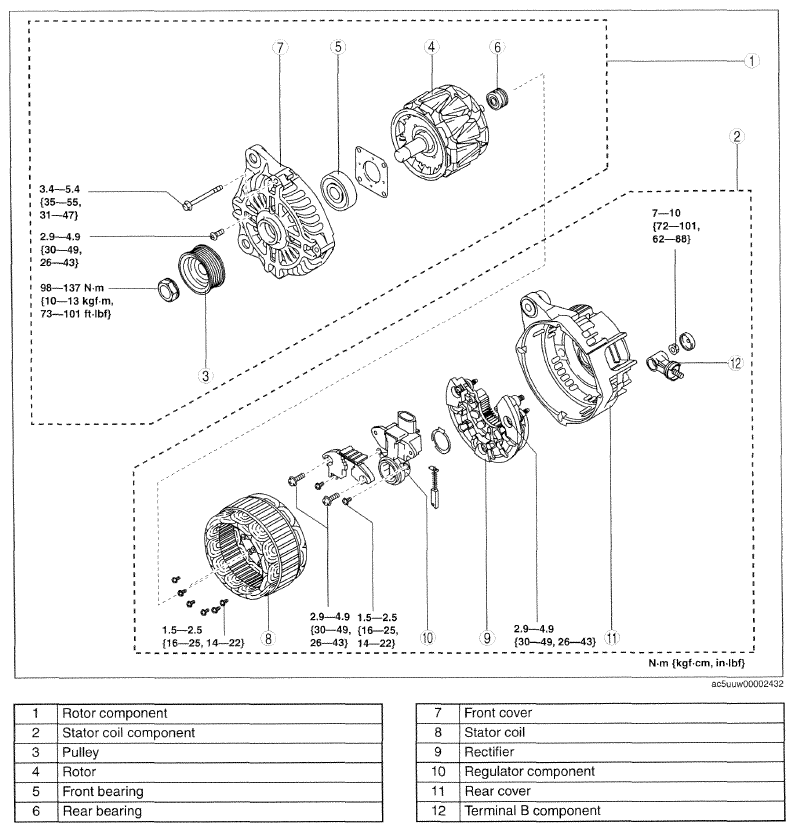

    Fig 1: Exploded View Of Generator With Torque Specifications
    G09758639Courtesy of MAZDA MOTORS CORP.
