Generator Installation Note

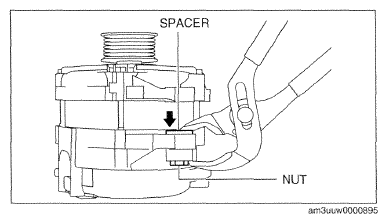

To facilitate the installation of the generator to the engine, grasp the spacer in the bolt installation hole using pliers and push it down to the nut side.

Fig 1: Installation Of Generator To Engine Using Pillars
Courtesy of MAZDA MOTORS CORP.
Temporarily install the generator to the engine with the bolt C.
Align the generator fixing hole with the engine side hole, then temporarily tighten the generator installation bolt B.
Securely tighten the generator installation bolts in the order of B, C.

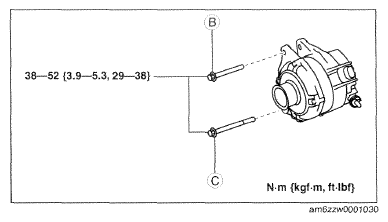

Fig 2: Generator And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
