Generator Removal Note

  1. Fully loosen the generator lower bolt and pull it outward until it contacts the body frame.
    NOTE:
    • The generator can be removed without fully removing the lower bolt from the engine.
  2. Remove the generator upper bolt.
  3. Remove the generator together with the lower bolt from the engine.
  4. Remove the generator from above the engine compartment.

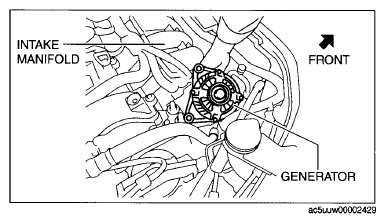

    Fig 1: Removing Generator From Engine Compartment
    G09074490Courtesy of MAZDA MOTORS CORP.
