Push Button Start Inspection

Remove the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
Verify that the continuity between the push button start terminals is as indicated in the table.

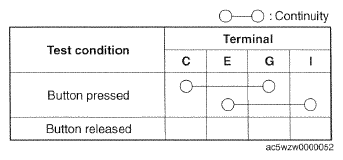

Fig 1: Push Button Start Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

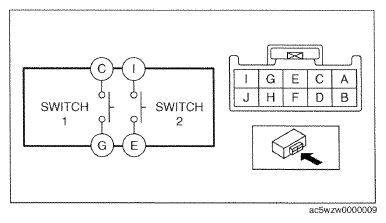

Fig 2: Push Button Start Circuit Diagram And Connector End View
Courtesy of MAZDA MOTORS CORP.
- If the continuity can be verified as indicated in the table, go to the next step.
- If not as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.

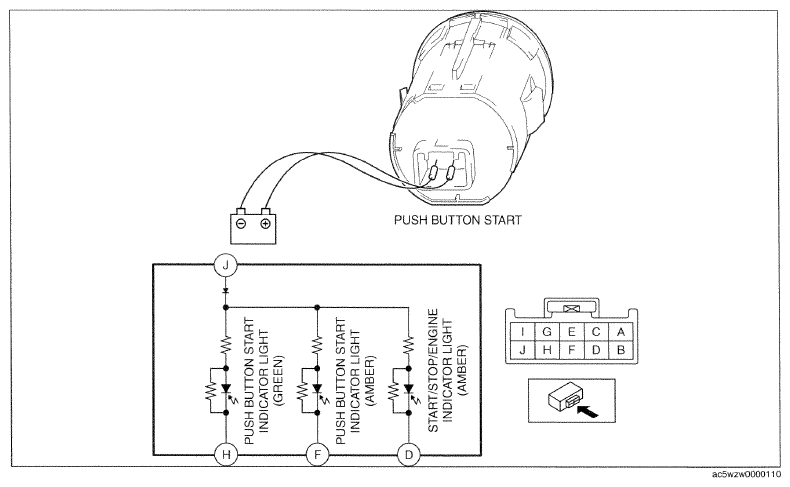

Fig 3: Applying Battery Positive Voltage And Ground To Push Button Start Terminals And Connector End View
Courtesy of MAZDA MOTORS CORP.
- If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)

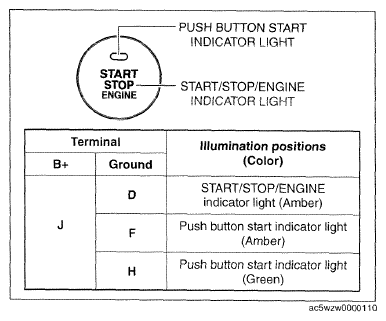

  Fig 4: Push Button Start Indicator Light Terminals Position Chart
  Courtesy of MAZDA MOTORS CORP.
