Not Reusing Windshield

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Windshield wiper arm and blade (Refer to WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (Refer to COWL GRILLE REMOVAL/INSTALLATION .)
    3. Front fender molding (Refer to FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
    4. Forward sensing camera (FSC) short-cord (with high beam control (HBC) system) (Refer to FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION .)
    5. Forward sensing camera (FSC) (with high beam control (HBC) system) (Refer to FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
    6. Forward sensing camera (FSC) clip (with high beam control (HBC) system) (Refer to FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION .)
    7. Rain sensor (with auto light/wiper system) (Refer to RAIN SENSOR REMOVAL/INSTALLATION .)
    8. Laser sensor (with smart city brake support (SCBS) (Refer to LASER SENSOR REMOVAL/INSTALLATION .)
    9. Auto-dimming mirror (with auto-dimming mirror) (Refer to AUTO-DIMMING MIRROR REMOVAL/INSTALLATION .)
    10. Rearview mirror (without auto-dimming mirror) (Refer to REARVIEW MIRROR REMOVAL/INSTALLATION .)
    11. A-pillar trim (Refer to A-PILLAR TRIM REMOVAL/INSTALLATION .)
    12. Sunvisor (Refer to SUNVISOR REMOVAL/INSTALLATION .)
    13. Front map light (dual light type) (Refer to FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    14. Assist handle (Refer to ASSIST HANDLE REMOVAL/INSTALLATION .)
    15. Cover (Refer to FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
  3. Set the headliner out of the way.
  4. Apply protective tape along the edge of the body.
    NOTE:
    • Overlap and adhere the protective tape to the corners to prevent damage.

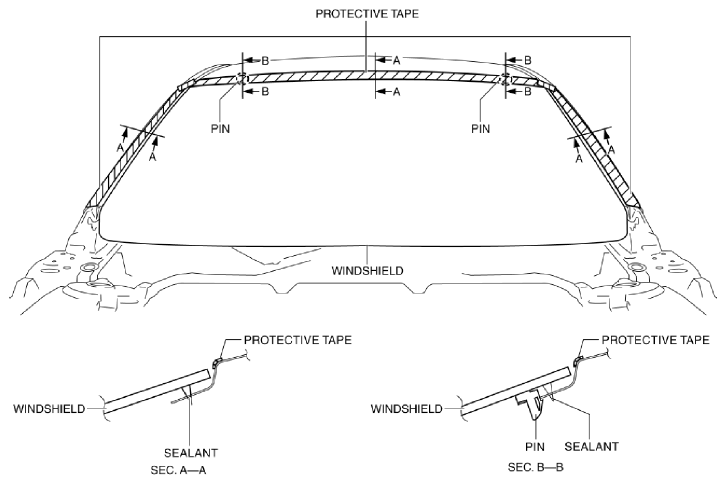

    Fig 1: Applying Protective Tape Along Body Edge
    G10962428Courtesy of MAZDA MOTORS CORP.
  5. Remove the windshield molding by pulling it outward.
    NOTE:
    • If the windshield molding is difficult to remove, warm the windshield molding using a hot air blower.

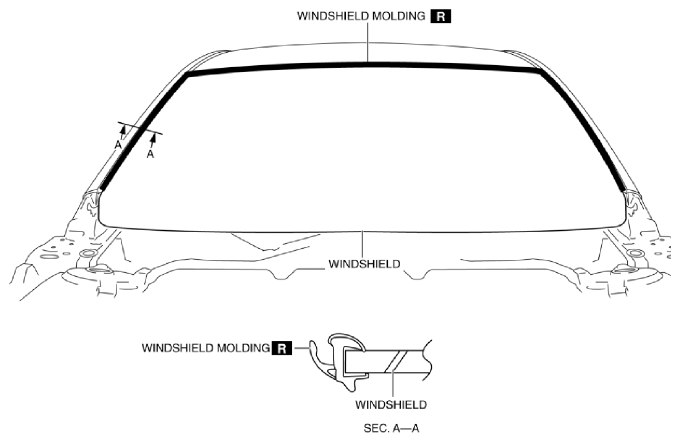

    Fig 2: Removing Windshield Molding
    G10962429Courtesy of MAZDA MOTORS CORP.
  6. Cut out the sealant all around the glass using a sealant remover.
    NOTE:
    • If it is difficult to cut sealant, use piano wire and follow the procedure under "Reusing Windshield".

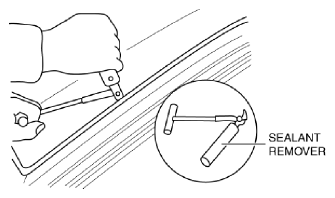

    Fig 3: Cutting Sealant Around Glass
    G10962430Courtesy of MAZDA MOTORS CORP.
  7. Remove the windshield.
