Fuse Block Removal/Installation: Installation

  1. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull the wiring harness in the direction of the arrow (2) while pressing the stopper to detach the fuse terminal from the stopper.

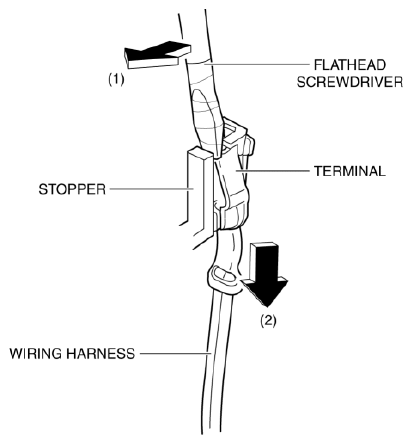

    Fig 1: Detaching Fuse Terminal From Stopper Using Screwdriver
    G10963809Courtesy of MAZDA MOTORS CORP.
  2. Relocate all fuse terminals to the new fuse block.
    CAUTION:
    • If terminals are installed incorrectly, it could damage electrical accessories and burn wiring harnesses. When relocating terminals after replacing the fuse block, line up the fuse blocks of old and news parts and always verify each of the wiring harnesses in the wiring diagram so that the installation positions are correct.

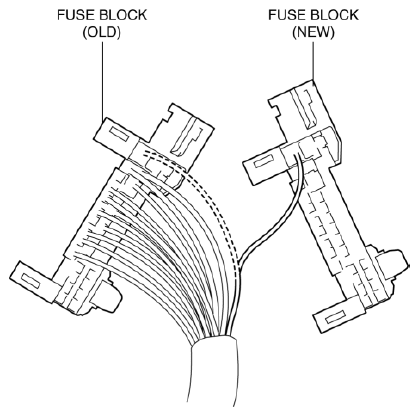

      Fig 2: Relocating All Fuse Terminals To New Fuse Block
      G10963810Courtesy of MAZDA MOTORS CORP.
    • A terminal disconnection could cause electronic components and the system to not operate normally due to poor contact. After terminal relocation, lightly pull the wiring harnesses to verify that they cannot be pulled out.
  3. Install the fuse block clip to the body.

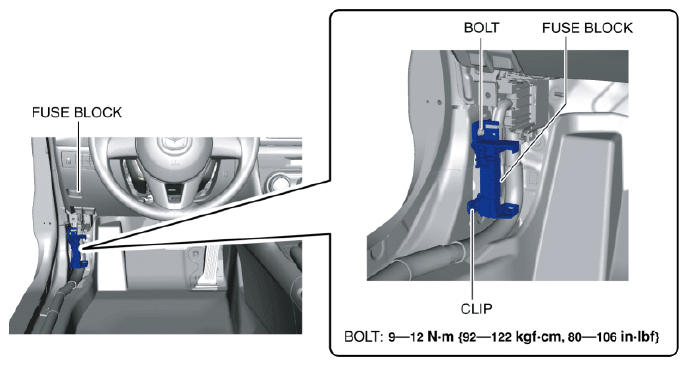

    Fig 3: Identifying Fuse Block Clip With Torque Specifications
    G10963811Courtesy of MAZDA MOTORS CORP.
  4. Install the bolt.
  5. Install the bands shown in the figure.

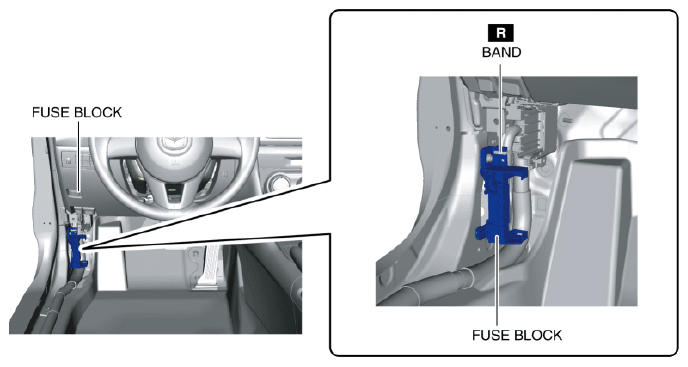

    Fig 4: Identifying Fuse Block Band
    G10963812Courtesy of MAZDA MOTORS CORP.
  6. Install all the fuses.
  7. Install the following parts:
    1. LF control unit (with advanced keyless entry system) (refer to LF CONTROL UNIT REMOVAL/INSTALLATION .)
    2. Front side trim (LH) (refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Front scuff plate (LH) (refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  8. Perform the "Verify Fuse Block Replacement". (refer to VERIFY FUSE BLOCK REPLACEMENT .)
  9. Connect the negative battery cable. (refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
