Starter Disassembly/Assembly

Disassemble in the order indicated in the table.

Assemble in the reverse order of disassembly.

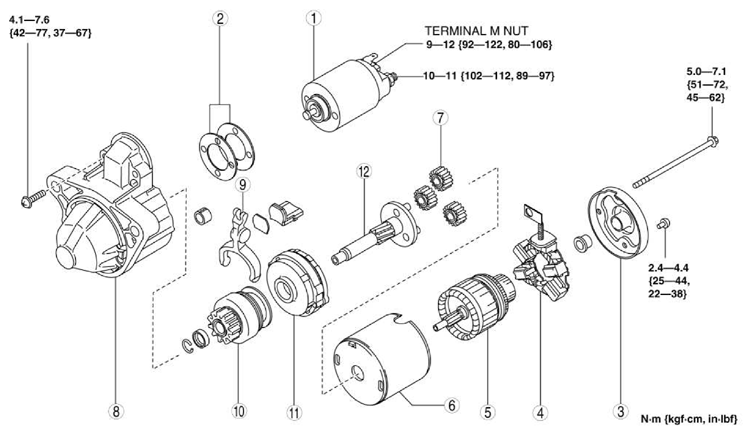

Fig 1: Identifying Starter Related Components With Torque Specifications

G10960230

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Magnetic switch
2	Adjustment washer
3	Rear housinq
4	Brush and brush holder
5	Armature
6	Yoke
7	Planetary gear
8	Front cover
9	Lever
10	Drive pinion
11	Internal gear
12	Gear shaft
