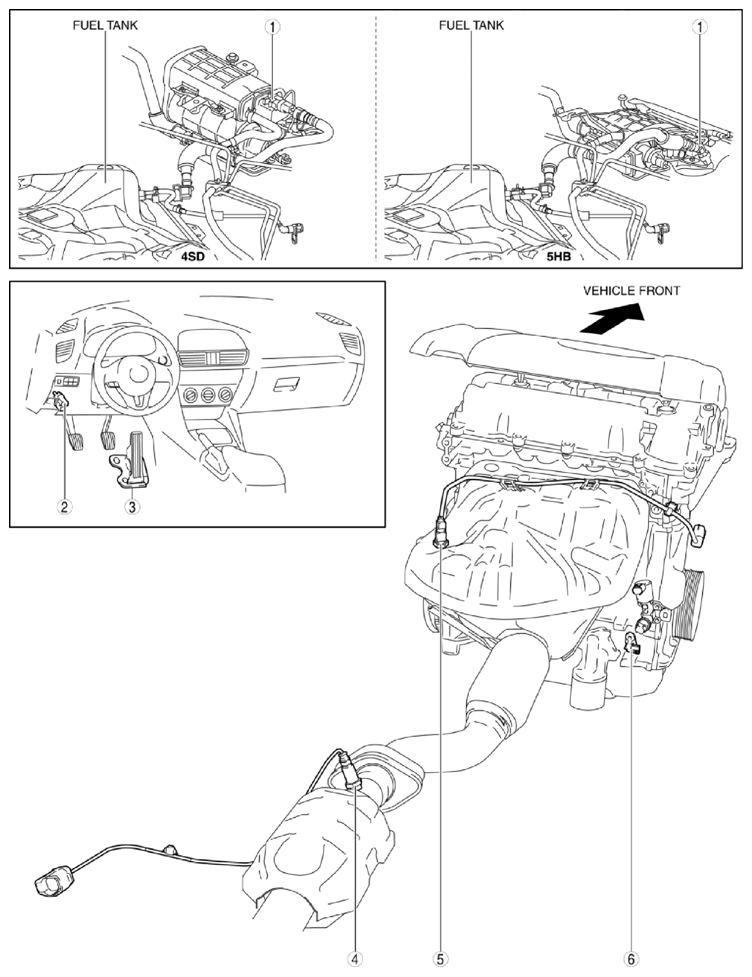

| 1 |
Fuel tank pressure sensor (U.S.A. and CANADA)
(See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .)
(See FUEL TANK PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 2 |
CPP switch (MTX)
(See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .) |
| 3 |
APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .) |
| 4 |
HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .) |
| 5 |
A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .)
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .) |
| 6 |
CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .)
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-G 2.0, [SKYACTIV-G 2.5] .) |
