Purge control

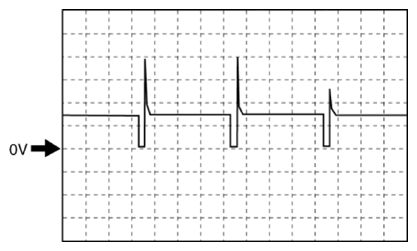

Fig 1: Purge Control Oscilloscope Graph

G10960290

Courtesy of MAZDA

PCM terminals

1AI(+)-body ground(-)
Oscilloscope setting
10 V/DIV (Y), 50 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
