Packing installation note

  1. Install the packing so that it is adhered around the entire fuel tank opening.

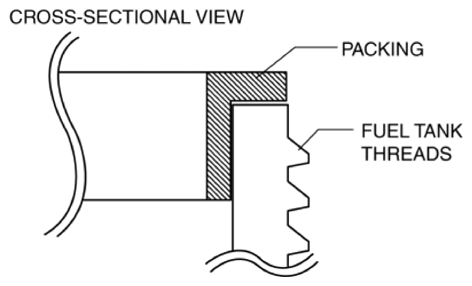

    Fig 1: Identifying Fuel Tank Threads
    G10960044Courtesy of MAZDA MOTORS CORP.
