Home >> Mazda >> 2016 >> 3 Sport, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Pump Unit Removal/Installation >> Set Plate Removal Note

Set Plate Removal Note

  1. Install the SST  shown in the figure.

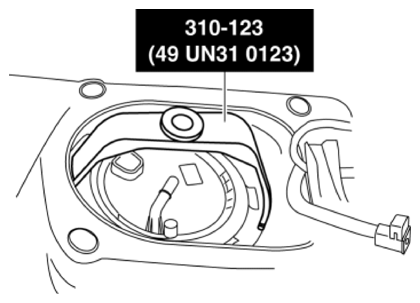

    Fig 1: Installing SST
    G10960056Courtesy of MAZDA MOTORS CORP.
  2. Remove the set plate using the SST  .
