Symptom Troubleshooting - Engine Control System
>>
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

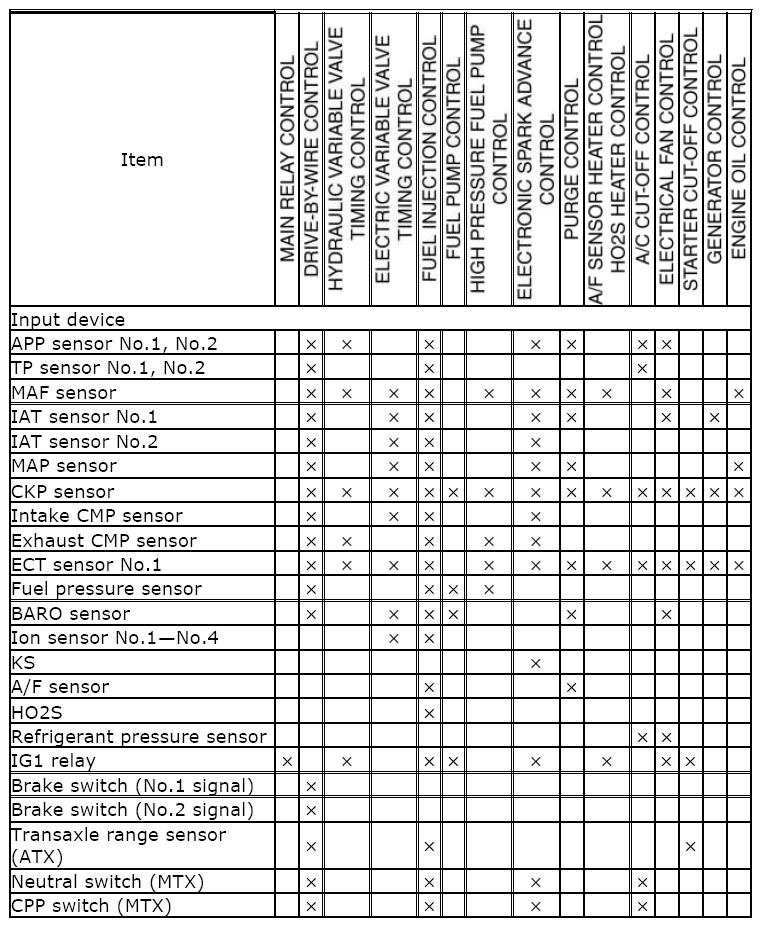

Fig 1: Control System Device And Control Relationship Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

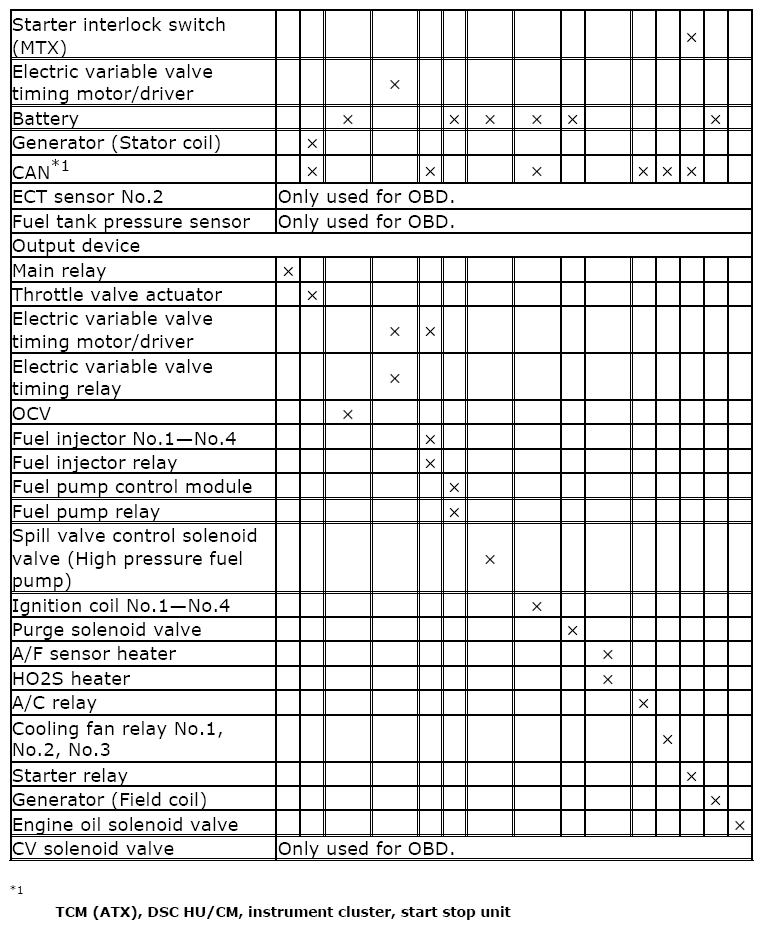

Fig 2: Control System Device And Control Relationship Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
