Troubleshooting Procedure

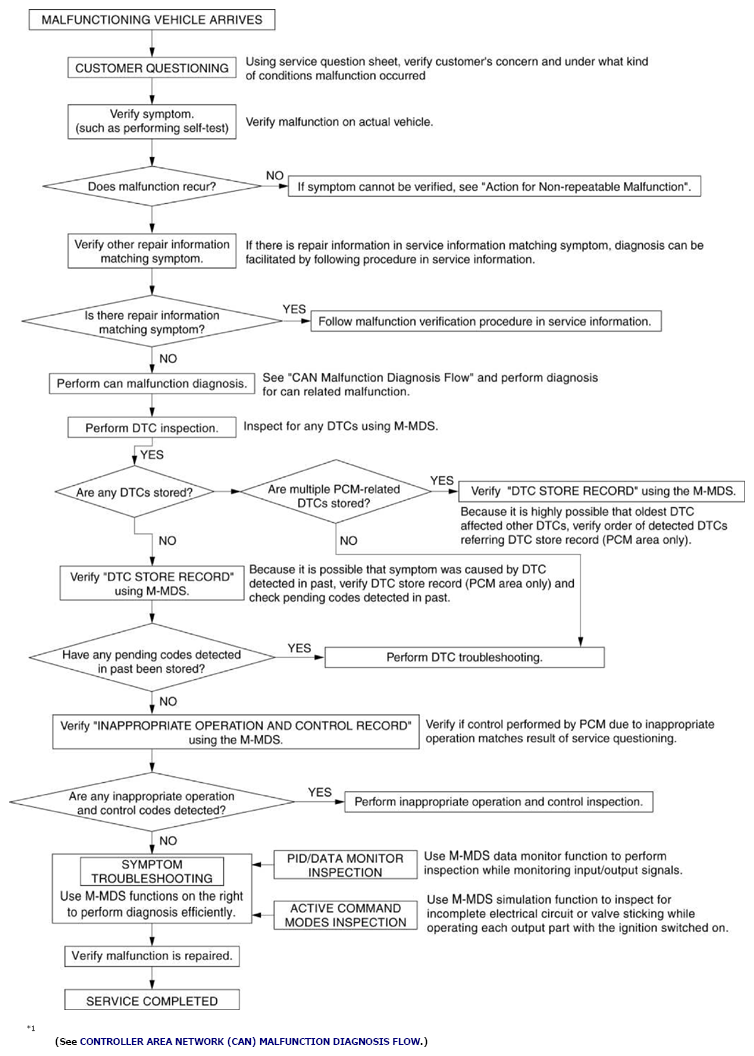

Fig 1: SKYACTIV-G 2.0 Troubleshooting Procedure Flowchart
G10959541Courtesy of MAZDA MOTORS CORP.
