Drive Selection Switch Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Perform the following procedure to remove the selector lever knob.
NOTE:
- If the servicing is difficult, release the shift lock manually and shift the selector lever to the N position.

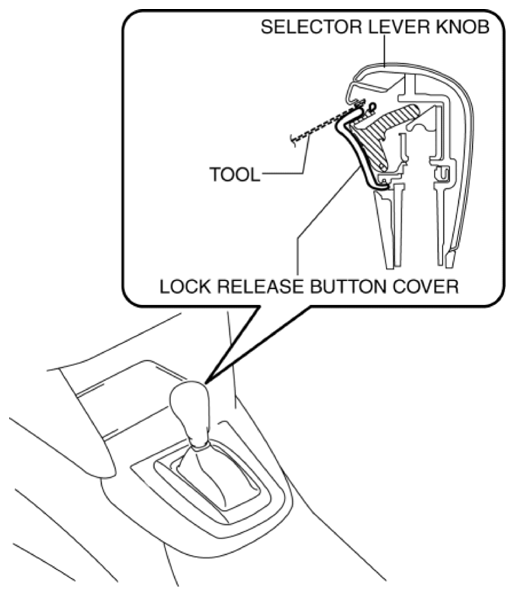

1. Insert the tool (width: 6 mm or less, thickness: 1 mm or less) as shown in the figure.

  Fig 1: Inserting Tool In Selector Lever Knob
  Courtesy of MAZDA MOTORS CORP.

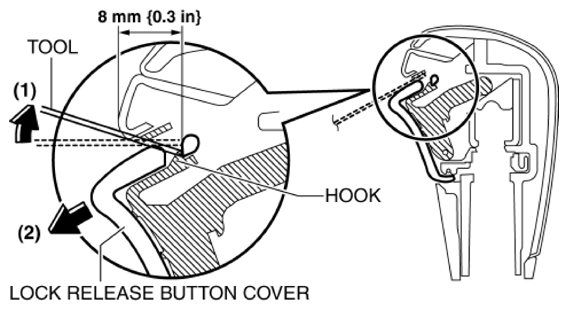

2. Move the tool in the direction of arrow (1) in the figure and detach the hook. Move the lock release button cover in the direction of arrow (2) in the figure and remove it.

  Fig 2: Removing Lock Release Button Cover
  Courtesy of MAZDA MOTORS CORP.

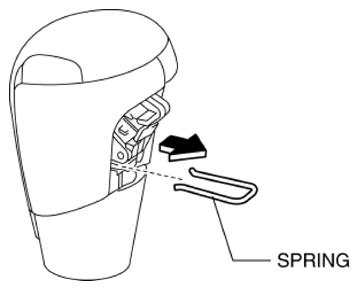

3. Remove the spring.

  Fig 3: Removing Spring From Selector Lever Knob
  Courtesy of MAZDA MOTORS CORP.

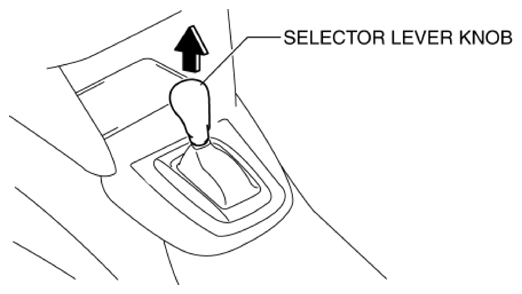

4. Remove the selector lever knob.

  Fig 4: Removing Selector Lever Knob
  Courtesy of MAZDA MOTORS CORP.
Remove the upper panel. (See UPPER PANEL REMOVAL .)
Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
Disconnect the shift panel component connector.

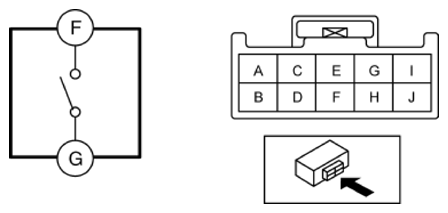

Verify that the continuity between shift panel component terminals F and G

Fig 5: Checking Continuity Between Shift Panel Component Terminals

Courtesy of MAZDA MOTORS CORP.

DRIVE SELECTION SWITCH SPECIFICATION

Test condition	Continuity
Drive selection switch pressed	Continuity
Drive selection switch not pressed	No continuity
