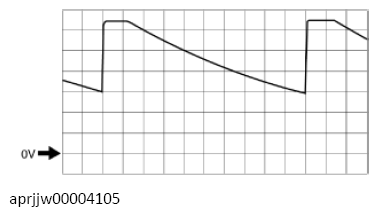

Pattern 2

Courtesy of MAZDA MOTORS CORP.

Terminal:
- Front door switch (driver-side) signal: 6G (+) ↔ body ground (-)
- Front door switch (passenger-side) signal: 6H (+) ↔ body ground (-)
- Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
