Body Control Module (BCM) Inspection
>>

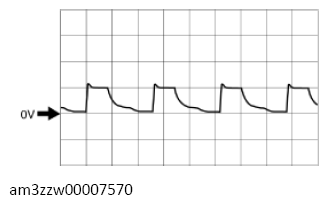

Generated pulse (reference)
>>
Pattern 3
Pattern 3
Courtesy of MAZDA MOTORS CORP.
Terminal: 2E (+) ↔ body ground (-)
Oscilloscope setting: 5 V/DIV (Y), 200 μs/DIV (X), DC range
