Battery Cover Installation Note

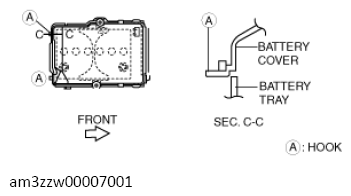

  1. Install with battery cover hooks A aligned with the battery tray holes at two points.
    G13726814Courtesy of MAZDA MOTORS CORP.

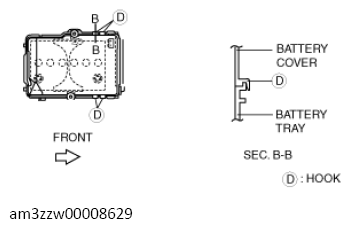

  2. Install with battery cover hooks D aligned with the battery tray flange at four points.
    G13726815Courtesy of MAZDA MOTORS CORP.
  3. Set the battery cover to battery tray hooks C at two points.
G13726816Courtesy of MAZDA MOTORS CORP.
