Parking Sensor Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    11. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
    12. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    13. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    14. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the nut.

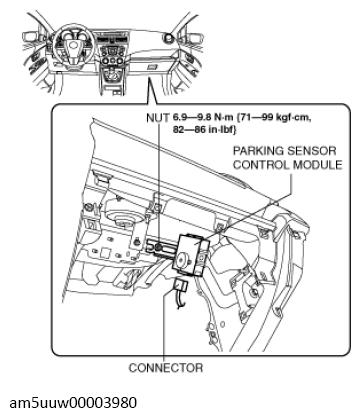

    Fig 1: Parking Sensor Control Module Nut With Torque Specification
    G13728783Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the parking sensor control module.
  6. Install in the reverse order of removal.
