Starter Installation Note

NOTE:

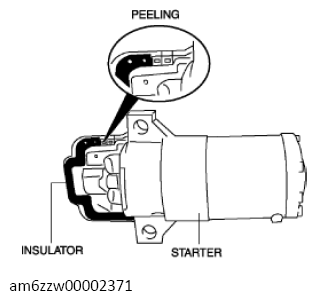

  • If the insulator is peeling or damaged, attach a new insulator using the following procedure:
G13726858Courtesy of MAZDA MOTORS CORP.
  1. Peel off the insulator from the starter completely using a scraper.

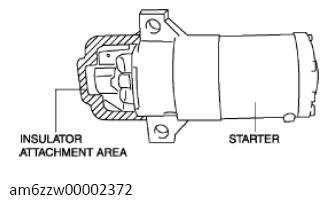

  2. Degrease the insulator attachment area.
    G13726859Courtesy of MAZDA MOTORS CORP.

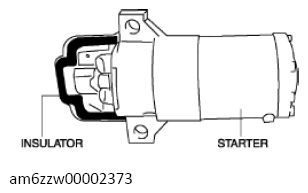

  3. Attach a new insulator to the starter.
G13726860Courtesy of MAZDA MOTORS CORP.
