Control System Wiring Diagram

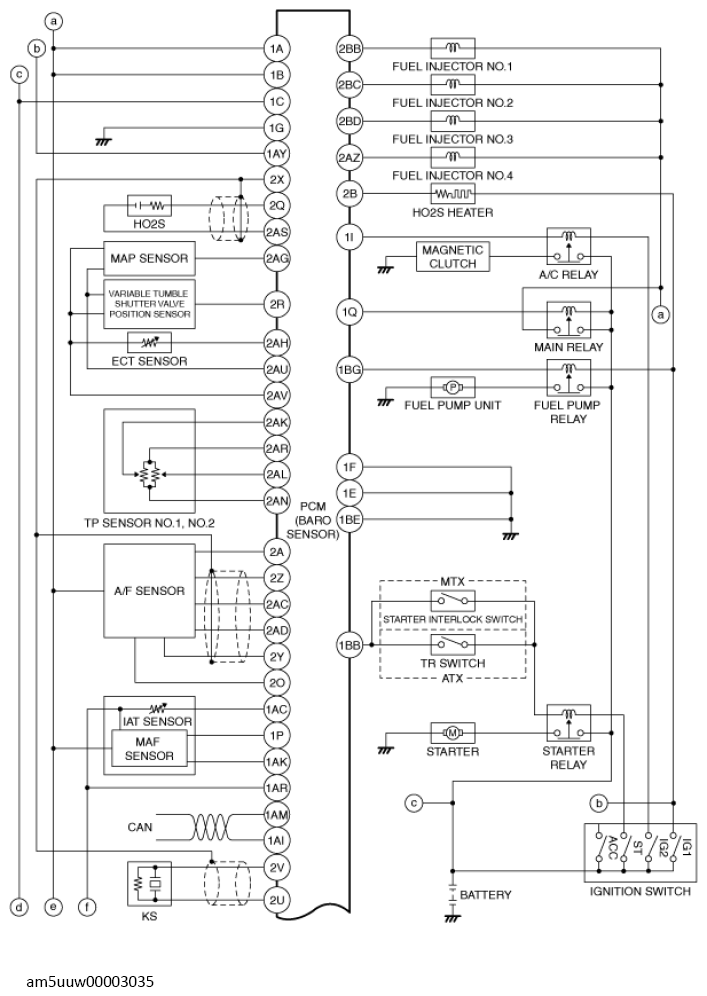

G13726871

Courtesy of MAZDA MOTORS CORP.

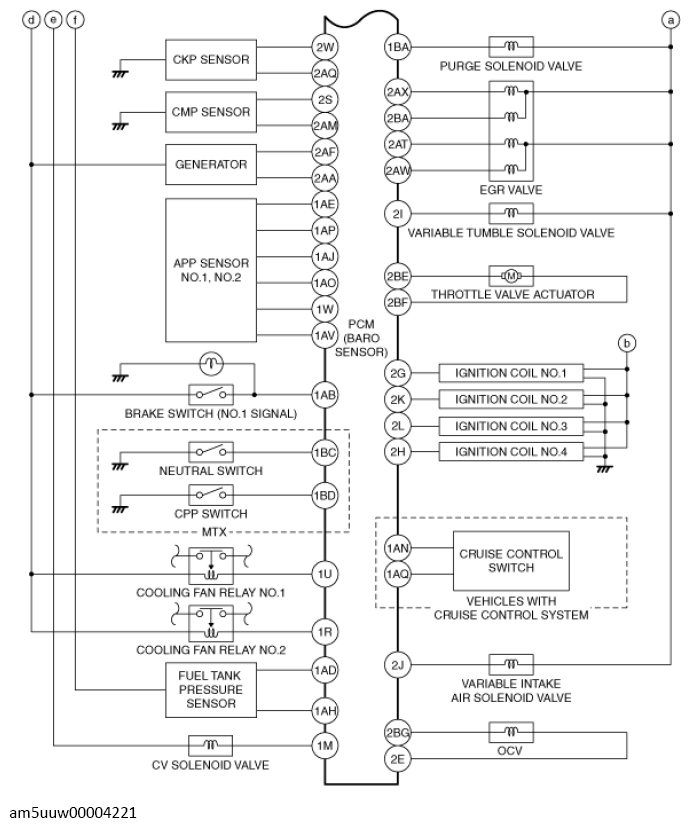

G13726872

Courtesy of MAZDA MOTORS CORP.
