Purge control

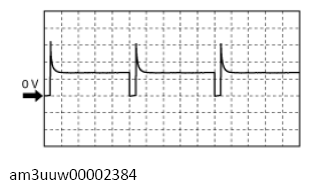

G13726891

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1BA (+)-body ground (-)

Oscilloscope setting

10 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

idle (after warm up)
