Transaxle Installation Note

CAUTION:

Verify that the torque converter stud bolts are inserted into the drive plate bolt holes, and install the transaxle installation bolts. Otherwise, the drive plate could be damaged.

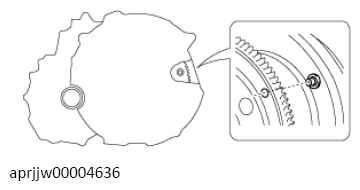

Verify that the torque converter stud bolts are inserted into the drive plate bolt holes from the starter installation hole.

Courtesy of MAZDA MOTORS CORP.

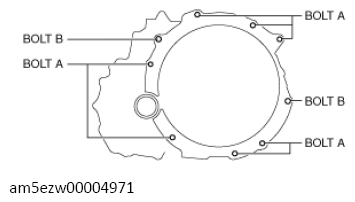

Tighten the transaxle installation bolts.

Courtesy of MAZDA MOTORS CORP.

Bolt length
- Bolt A: approx. 50 mm {2.0 in}
- Bolt B: approx. 65 mm {2.6 in}
Tightening torque

38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
