Drive Plate Removal/Installation: Notes

  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove in the order shown in the figure.
  3. Install in the reverse order of removal.

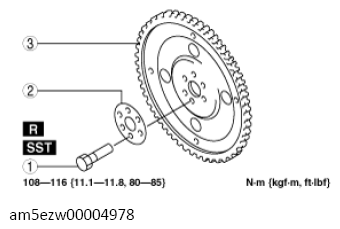

    Fig 1: Drive Plate Components With Torque Specification
    G13727432Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Drive plate installation bolt
    (See DRIVE PLATE INSTALLATION BOLT REMOVAL NOTE .)
    (See DRIVE PLATE INSTALLATION BOLT INSTALLATION NOTE .)
    2 Backing plate
    3 Drive plate
