Home >> Mazda >> 2016 >> 6 Touring, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Coolant Temperature (ECT) Sensor Removal/Installation >> Hose Connection Note

Hose Connection Note

  1. Align the white marks on the hose with the white marks on the pipe and connect them.

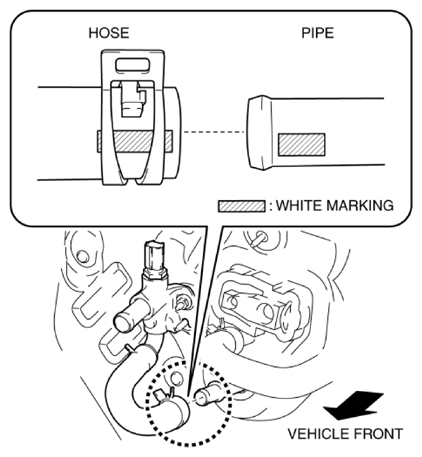

    Fig 1: Aligning White Marks On Hose With White Marks On Pipe
    G10985615Courtesy of MAZDA MOTORS CORP.
