KS Installation Note

Verify that there is no foreign matter caught between the KS unit and cylinder block.
The direction of the KS connector is within the 60-degree angle range shown in the figure.

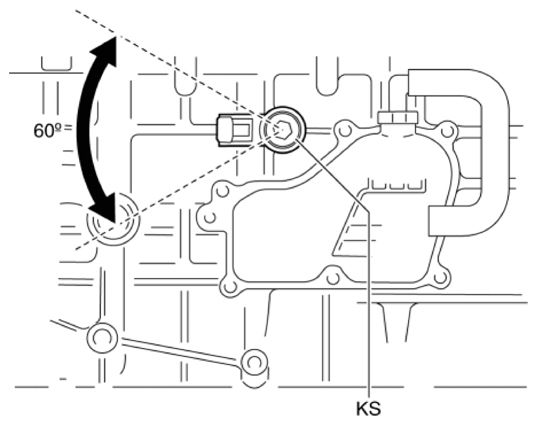

Fig 1: Identifying KS Connector Angle

Courtesy of MAZDA MOTORS CORP.
