Inspection Using An Oscilloscope (Reference)
>>
Purge control
Purge control

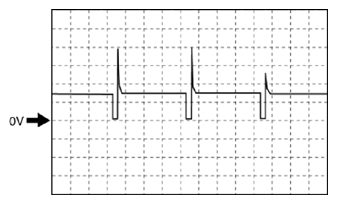

Fig 1: Purge Control Signal Waveform
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1AI(+)-body ground(-)
Oscilloscope setting
10 V/DIV (Y), 50 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
